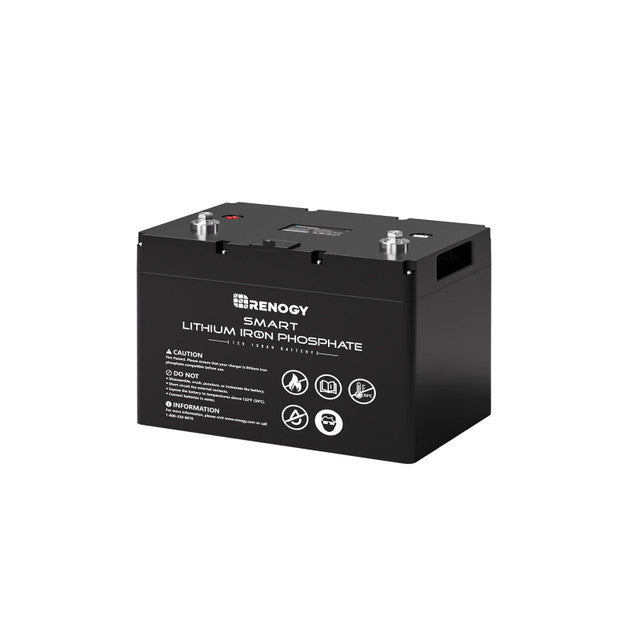

12V 100Ah Smart Lithium Iron Phosphate Battery

Description

• Premium battery cells that last over 4000 cycles.
• The next-level Group 27 battery for a seamless upgrade.
• A reliable BMS system with dual-processors.
• Auto-balancing for improved charging efficiency.

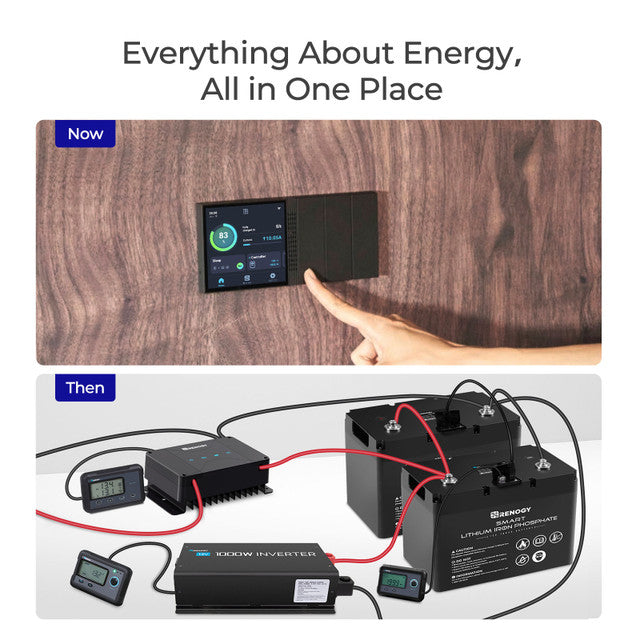

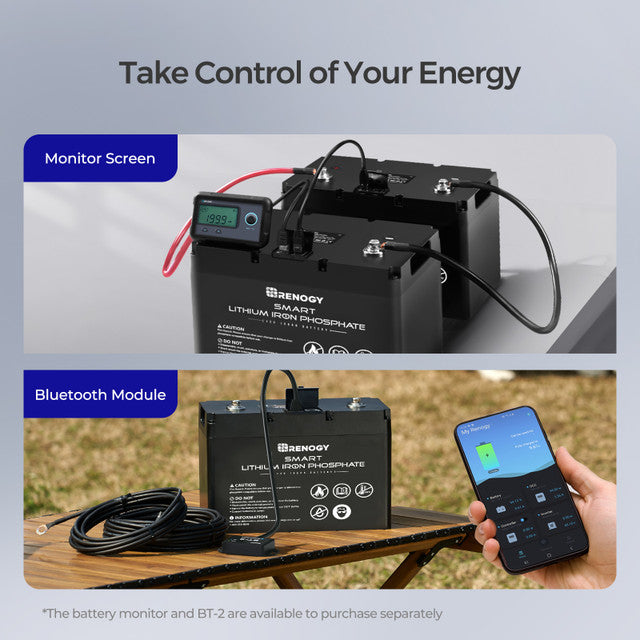

• Works with the BT-2 Bluetooth module for real-time monitoring.

Specifications

Electrical Specs

• Battery Type: Lithium Iron Phosphate
• Rated Capacity: 100AH
• Nominal Voltage: 12.8V
• Voltage Range: 10-14.8V
• Energy: 1280WH
• Cycle Life(0.2C,25℃): 80%DOD 4000 Cycles
• Connection Method: Parallel
• Automatically Self-heating Function: No

Mechanical Specs

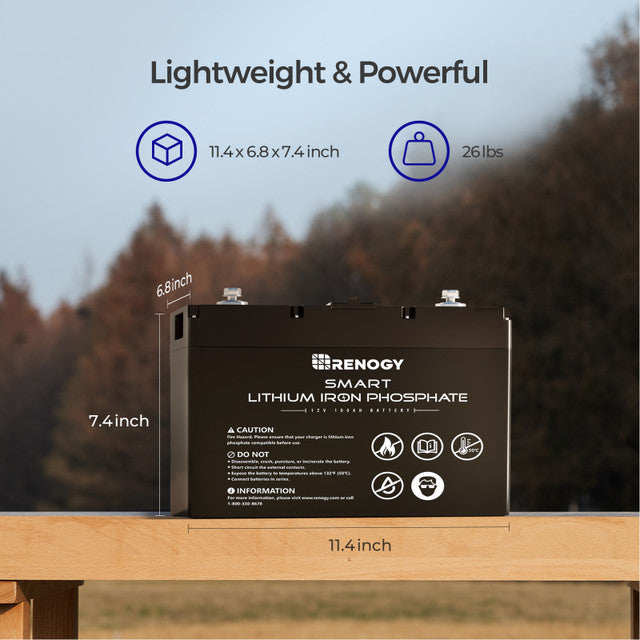

• Dimensions: 11.4 x 6.8 x 7.4 inch /289 x 172 x 188 mm
• Weight: 26 lbs. / 11.8 kg
• Protection Rate: IP54
• Housing Material: PC+ABS

Charging Parameters

• Charge Voltage: 14.4V

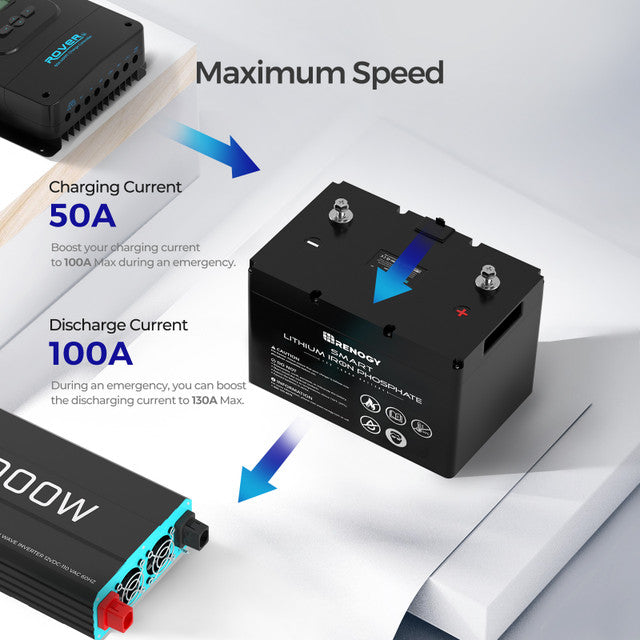

• Maximum Continuous Charging Current: 50 A
• Charge Cut-off Voltage: 14.4V

Discharging Parameters

• Maximum Continuous Discharging Current: 100 A
• Discharge Cut-off Voltage: 10V

Temperature Parameters

• Standard Operation Temperature: 25℃±5℃
• Storage Temperature: -13~149℉ / -25~65℃
• Charge Temperature: 32~131°F/ 0~55°C
• Discharge Temperature: -4~140°F/ -20~60°C

Communication

• Built-in Bluetooth: No
• Communication Port: RJ45 (Modbus Protocol)

Accessories

• Bolts: M8 x2

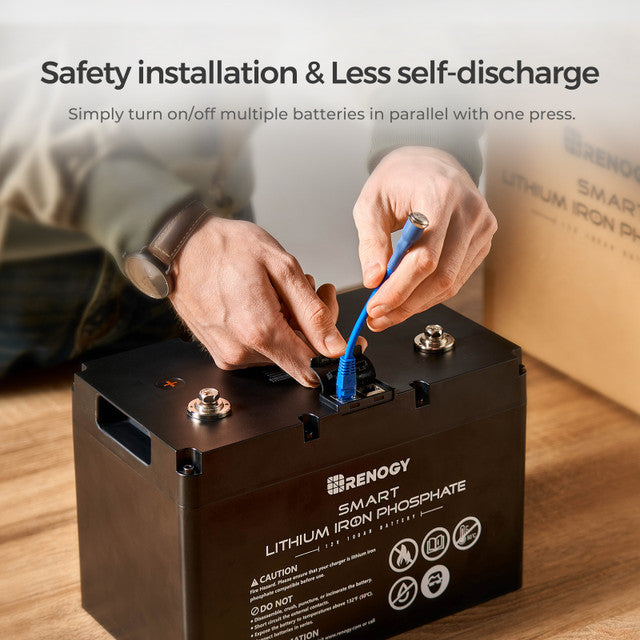

• Activation switch: x1

Warranty

• Material and workmanship warranty: 5-year

Certifications

• UN38.3, MSDS, CE, FCC, PSE, UL (Battery Cell), TUV (Battery Cell)
