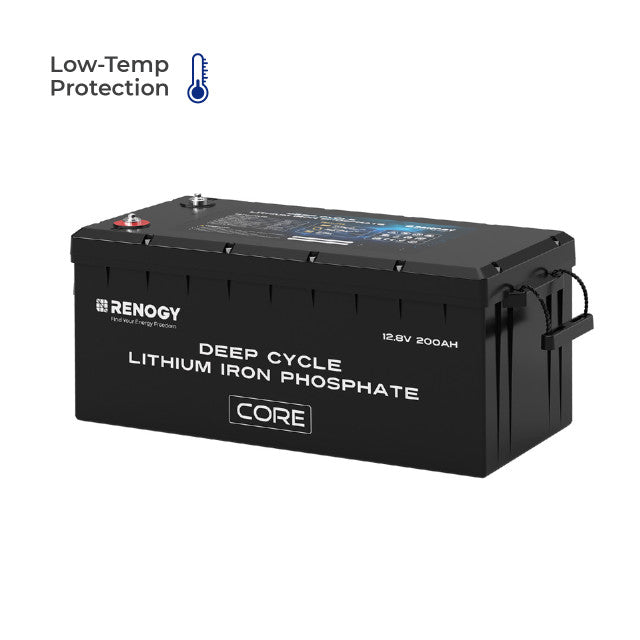

12V 200Ah Core Series Deep Cycle Lithium Iron Phosphate Battery - Supports Series Connection for 24V/48V Systems

Description

• Get max. 6% more power than rated capacity.
• 400A@10s peak output to start heavy loads.

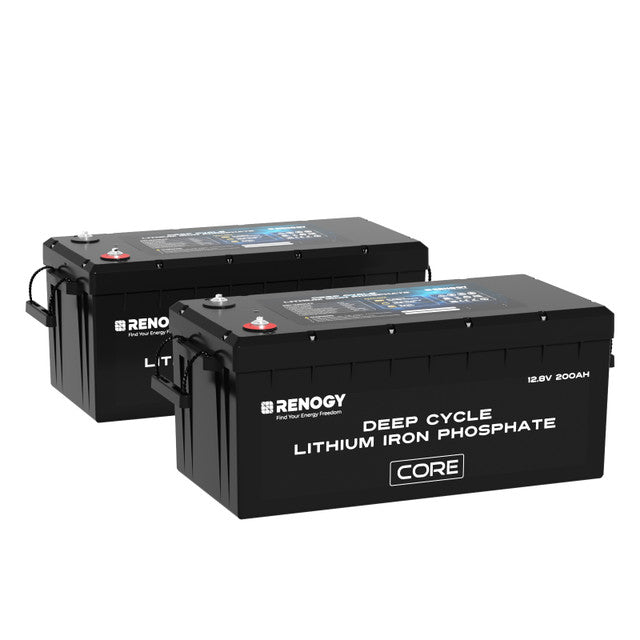

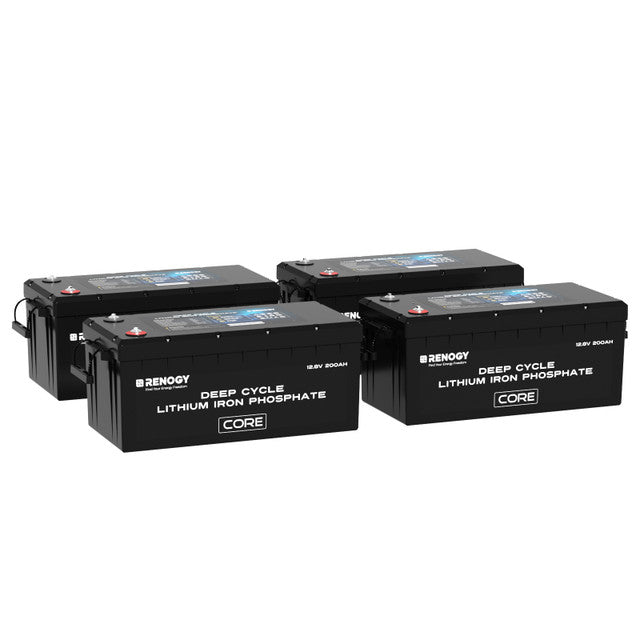

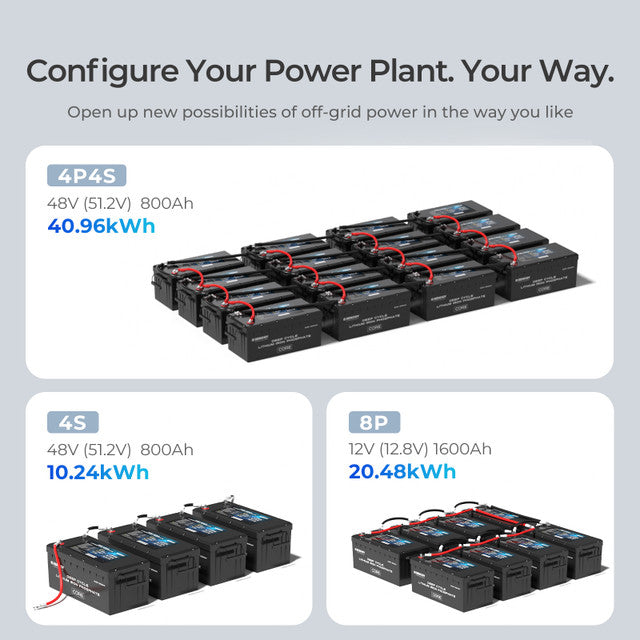

• Support series, parallel, or series-parallel connections.
• A true 200A BMS with low-temperature cut-off.
• 5-year limited warranty & 24-hour timely assistance.

Specifications

Electrical Specs

• Rated Capacity (0.5C, 25°C): 200Ah
• Voltage: 12V
• Energy: 2560Wh
• Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)

Charging Parameters

• Charge Voltage: 14.4V
• Maximum Continuous Charge Current: 100A

Discharging Parameters

• Maximum Continuous Discharge Current: 200A
• Peak Discharge Current: 400A@10s

Temperature Parameters

• Operation Temperature Range: Charge: 32°F to 131°F / 0°C to 55°C Discharge: -4°F to 140°F / -20°C to 60°C
• Storage Temperature Range: -13°F to 149°F / -25°C to 65°C
• Operation Relative Humidity: 10% to 95%

Mechanical Parameters

• Dimension (L x W x H): 20.55 x 9.45 x 8.62 in / 522 x 240 x 219 mm
• Weight: 47.3 lbs. / 21.45 kg
• Terminal Bolt Size: M8 x 1.25 x 15 mm
• Protection Rating: IP65

Accessories

• Long Terminal Bolts (2): M8

Certifications

• MSDS, UN38.3, FCC, PSE, CE, UKCA, IEC62619: YES

Warranty

• Material and Workmanship Warranty: 5 Years
