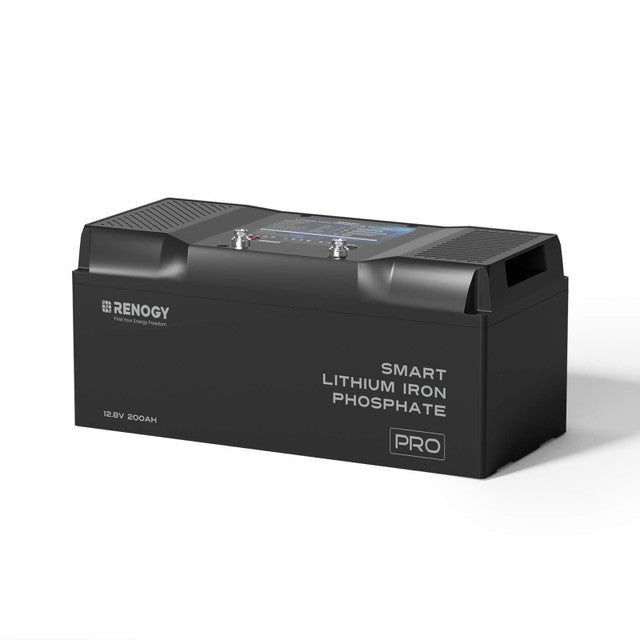

12V 200Ah Pro Smart Lithium Iron Phosphate Battery w/Bluetooth & Self-heating Function

Description

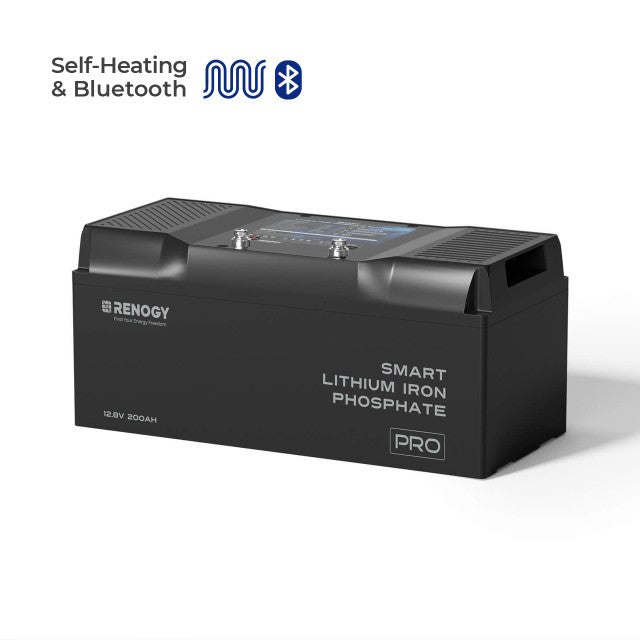

• The 2-in-1 12V 200Ah LiFePO4 battery with self-heating & BT
• Double active safety design for comprehensive safety
• Flame-retardant casing stops vertical burning from spreading in 10s
• Simply connect the battery to the DC Home app via Bluetooth
• Waterproof, dust-proof (IP67), and corrosion-resistant (ISO 9227)

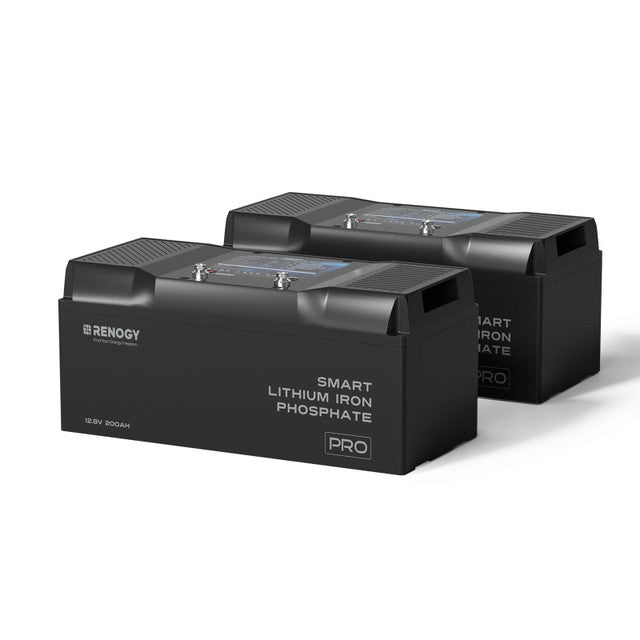

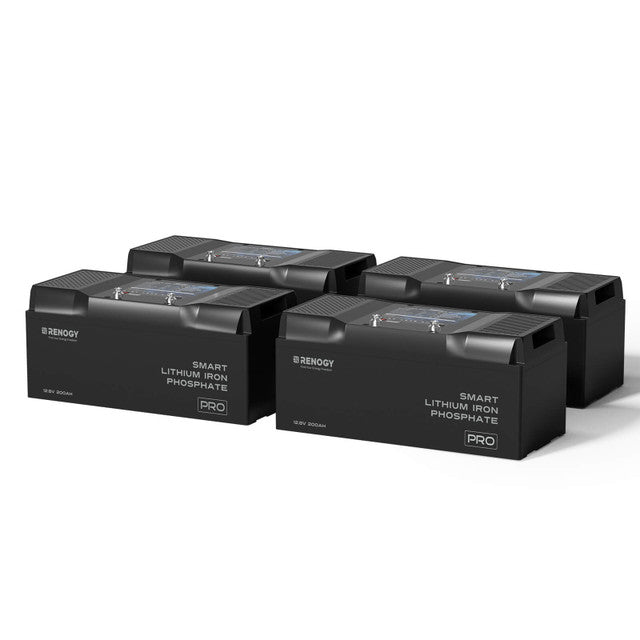

• Support parallel connection(up to 8)

Specifications

Battery

• Battery Type: Lithium Iron Phosphate
• Nominal Voltage: 12.8V
• Rated Capacity: 200Ah (0.5C, 25℃)
• Voltage Range: 10V to 14.8V
• Maximum Charge Current: 200A
• Maximum Discharge Current: 200A
• Peak Discharge Current: 270A@30s
• Cycle Life (0.5C, 25℃): 5000 Cycles (80% DOD, 80% EOL)
• Charge Temperature Range: -4°F to 131°F (-20°C to 55°C)
• Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)
• Storage Temperature Range: -13°F to 149°F (-25°C to 65°C)
• Operation Relative Humidity: 10% to 95%
• Connection Method: Parallel (Up to 8)
• Communication Protocol: Bluetooth
• Terminal Bolt Size: Terminal Bolt: M8 x 1.25 x 12 mm Long Terminal Bolt: M8 x 1.25 x 16 mm
• Recommended Terminal Torque: 70.8 inch·lbs / 8 N·m
• Housing Material: PC/ABS
• Protection Rating: IP67
• Flame Retardancy: UL94 V-0
• Dimensions: 18.4 x 8.4 x 8.2 in (467 x 212 x 208 mm)
• Weight: 50.7 lb (23 kg)

Accessories

• Terminal Bolts (2): 2 x M8 x 1.25 x 12 mm
• Long Terminal Bolts (2): 2 x M8 x 1.25 x 16 mm

Warranty

• Material and Workmanship Warranty: 7 Years

Certifications

• UL, MSDS, UN38.3, FCC, CE, PSE, and UKCA: Yes
