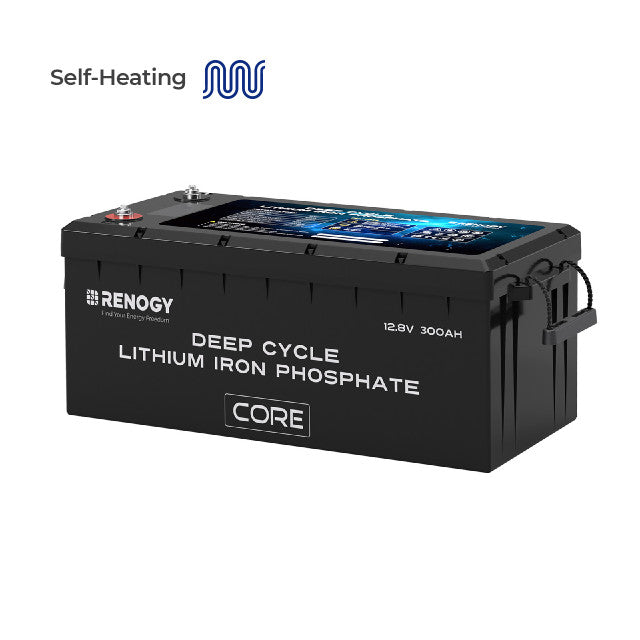

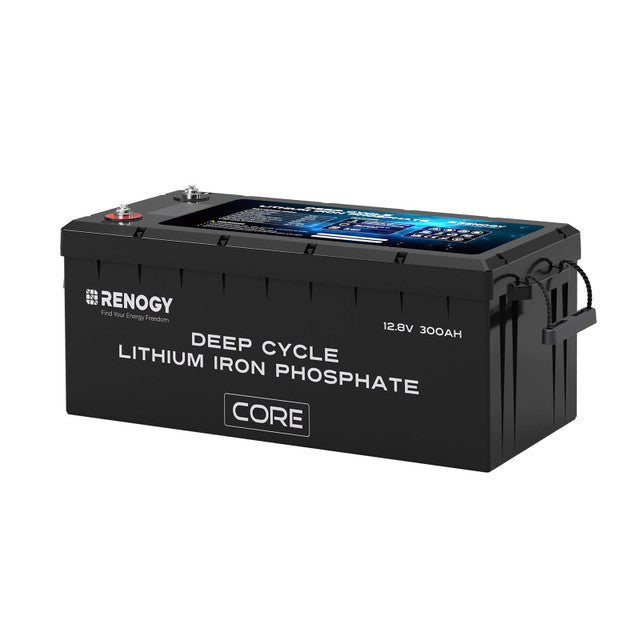

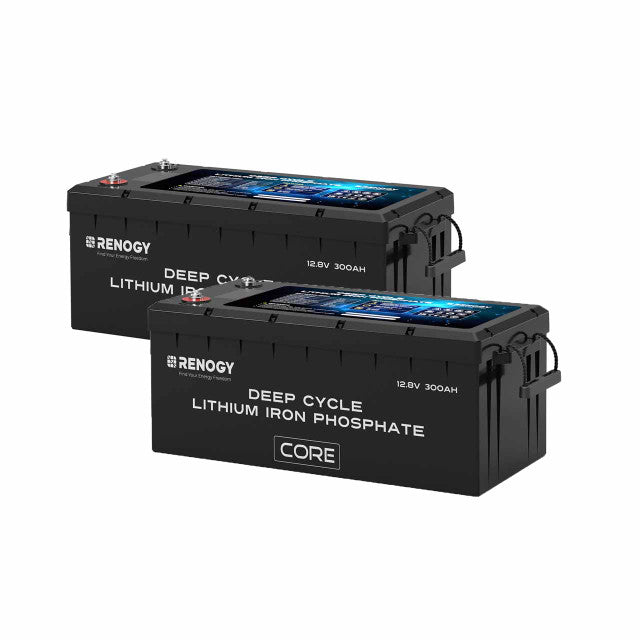

12V 300Ah Core Series Deep Cycle Lithium Iron Phosphate Battery w/Self-Heating

Description

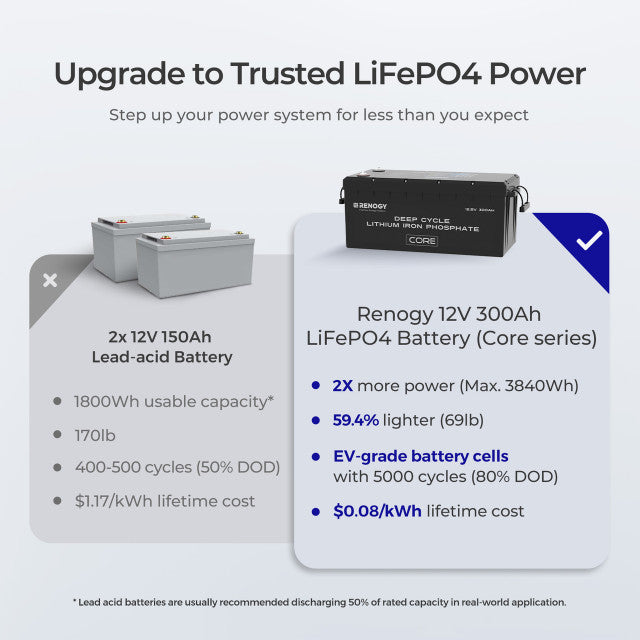

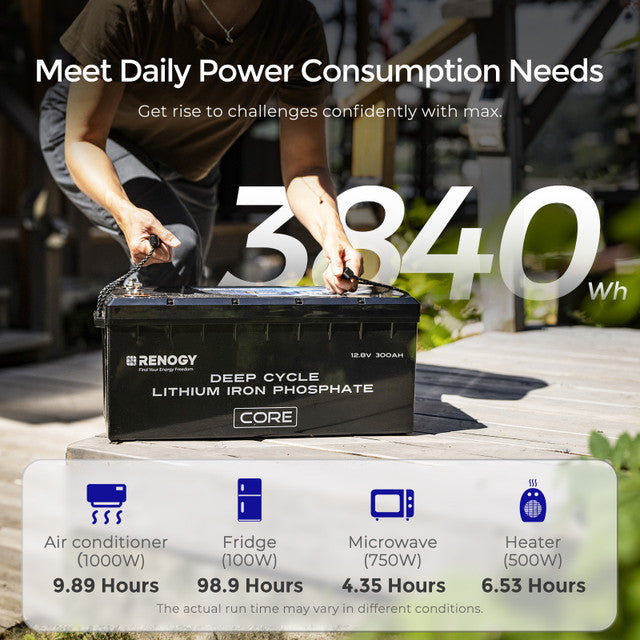

• 59% more power than a same-sized 200Ah LiFePO4 Battery

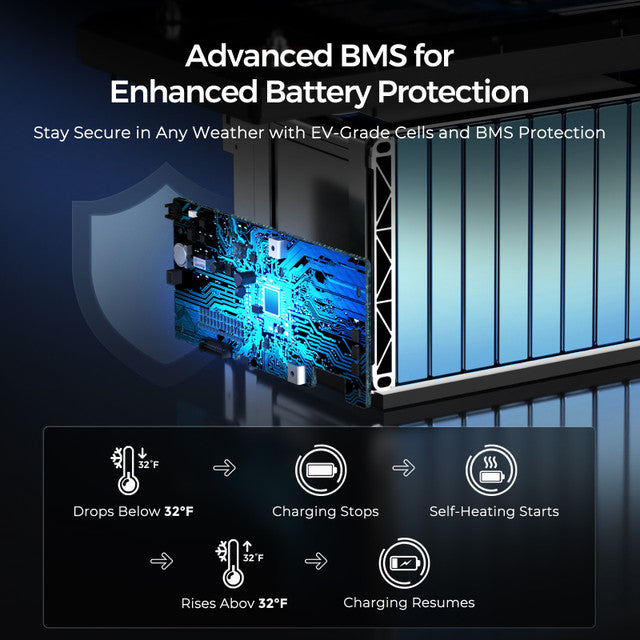

• BMS protection for low-temperature protection.

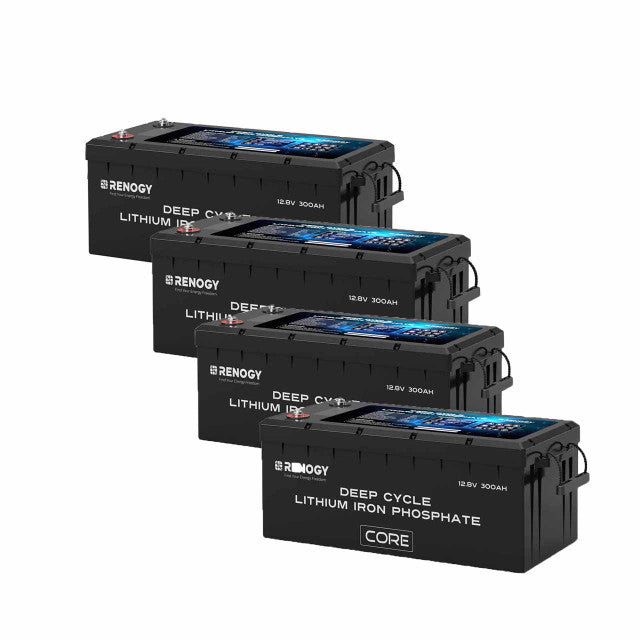

• Support series, parallel, or series-parallel connections.

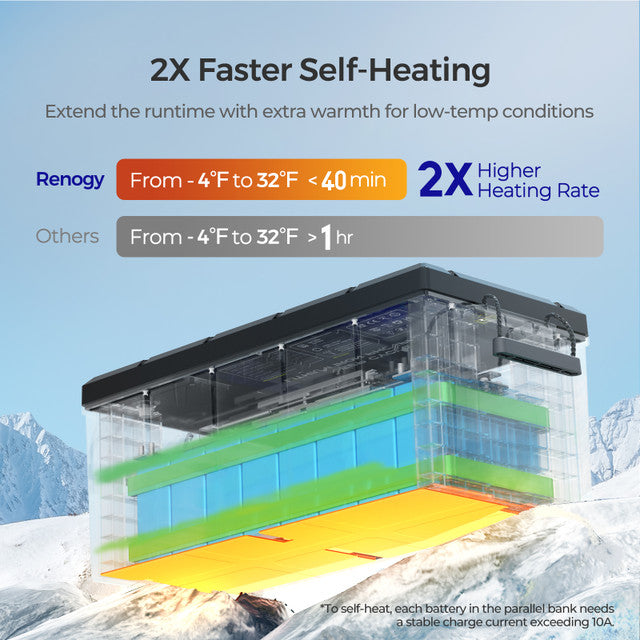

• 2x faster self-heating triggered at 32℉ (0℃).
• 5-year limited warranty & 24-hour timely assistance.

Specifications

Battery

• Battery Type: Lithium Iron Phosphate
• Voltage: 12V
• Rated Capacity: 300Ah (0.5C, 25℃)
• Charge Voltage: 14.4V
• Maximum Charge Current: 200A
• Maximum Discharge Current: 200A
• Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)
• Charge Temperature Range: '-4°F~131°F (-20°C~55°C)
• Discharge Temperature Range: '-4°F~140°F (-20°C~60°C)
• Storage Temperature Range: '-13°F~149°F (-25C~65°C)
• Operation Relative Humidity: 10%~95%

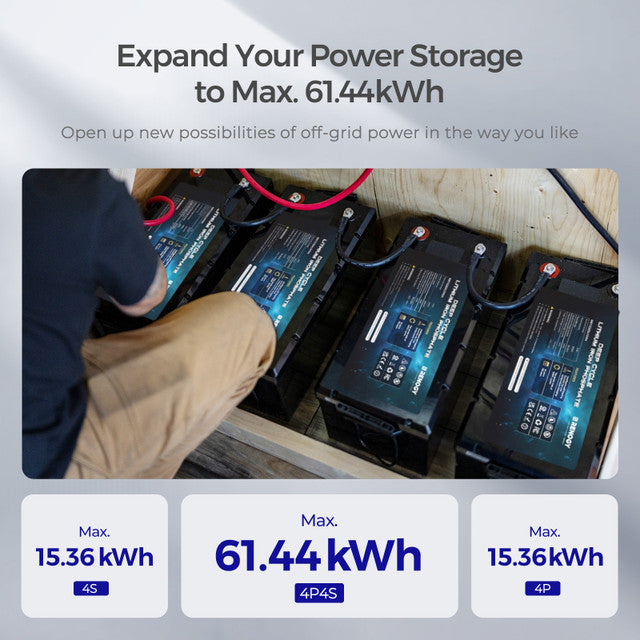

• Connection Method: Series (Up to 4); Parallel (Up to 4); Series & Parallel (4S4P)
• Communication Protocol: N/A
• Terminal Bolt Size: M8
• Recommended Terminal Torque: 10 N·m~12 N·m
• Housing Material: ABS
• Protection Rating: IP65
• Dimensions: 20.55 x 9.45 x 8.62 inch (522 x 240 x 219 mm)
• Weight: 69.0 lbs. (31.3 kg)

Accessories

• Long Terminal Bolts (2): M8

Warranty

• Material and Workmanship Warranty: 5 Years

Certifications

• MSDS, UN38.3, FCC , PSE, CE, UKCA: YES
