Renogy

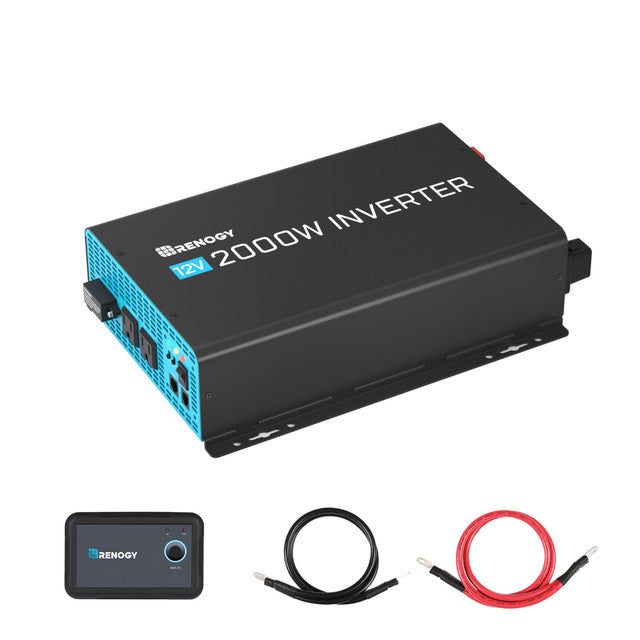

2000W 12V Pure Sine Wave Inverter with Power Saving Mode (New Edition)

2000W 12V Pure Sine Wave Inverter with Power Saving Mode (New Edition)

$329.99 USD
$329.99 USD
Sale Sold out
Taxes included.
Options

Description

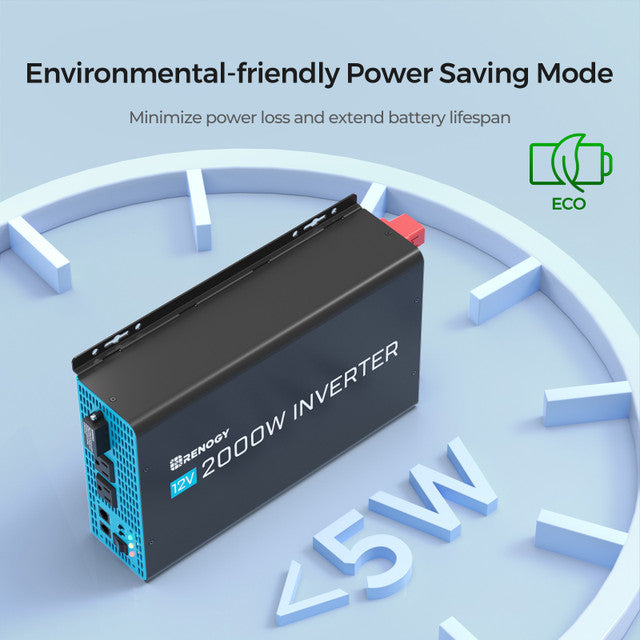

• ECO Mode Auto-adjusts output, extends life, reduces consumption.

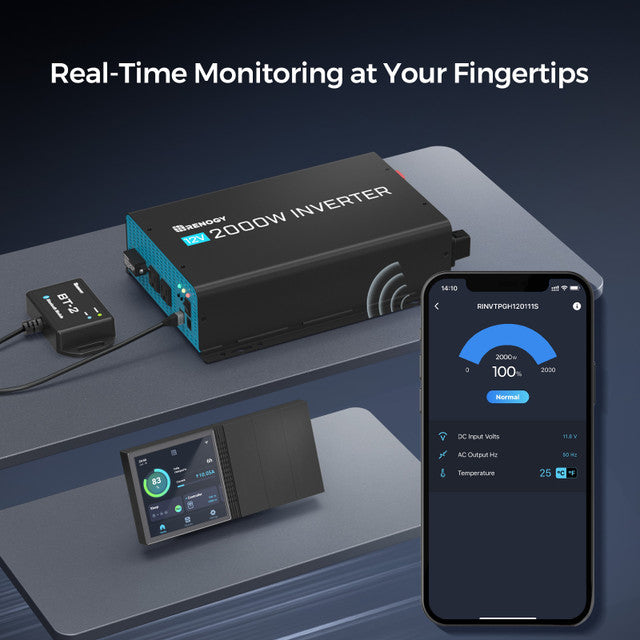

• BT-2 Module, Renogy DC Home App for monitoring.

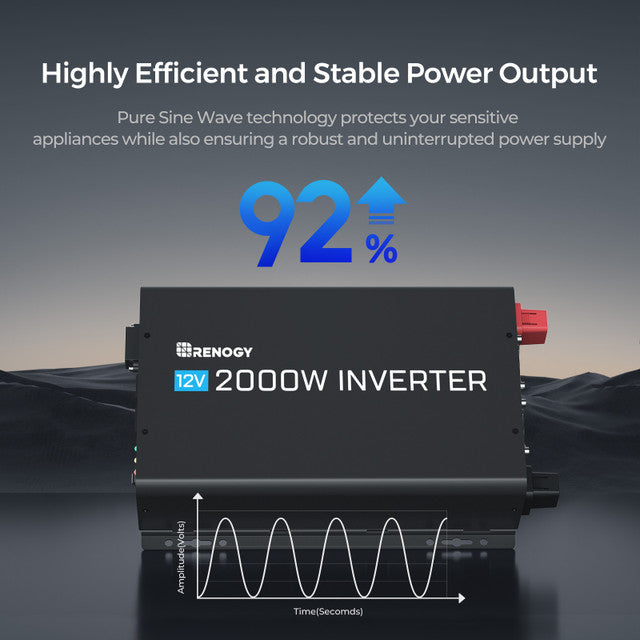

• Pure sine wave output for sensitive electronics.
• Dual high-speed fans for stable temps under load.
• Compatible with BT-2 for monitoring via App, Renogy ONE M1/Core.



Specifications

General Data
  • Output Waveform: Pure Sine Wave

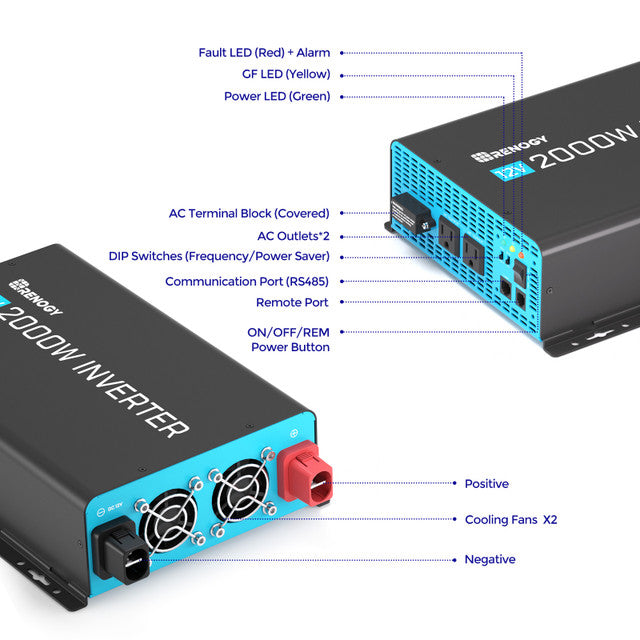

  • AC Terminals: 2 x AC Sockets + Terminal Block
  • DC Terminals: M8-1.25x15
  • Communication: RS485
  • Operating Temperature: -4°F -104°F/-20°C - 40°C
  • Storage Temperature: -40°F-158°F/'﹣40℃～70℃
  • Humidity: Max 93%, Non-condensing
  • Cooling: Thermally Controlled Fans

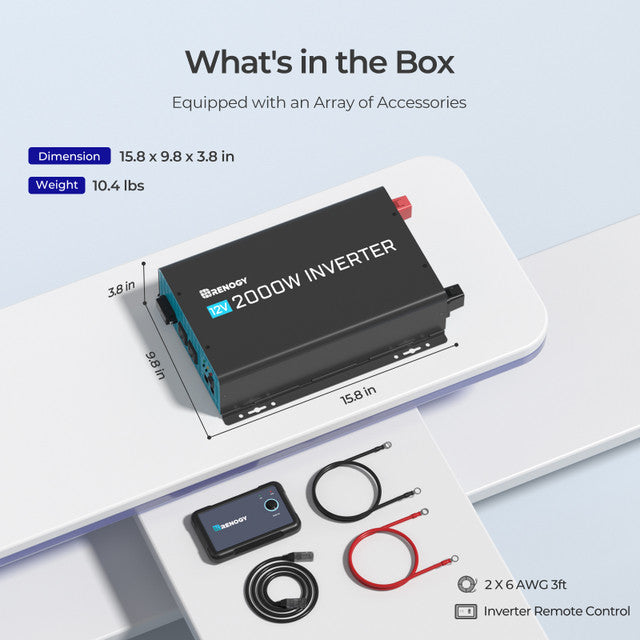

  • Dimensions (LxWxH): 15.8 x 9.8 x 3.8in / 401 x 249 x 96mm
  • Weight: 10.4 lbs / 4.7 kg
Electrical Data
  • Continuous Output Power: 2000W
  • Continuous Output Current: 8.3A AC
  • Total Harmonic Distortion (THD): < 3% Linear Load / < 5% Non-linear Load
  • Power Factor: ＜1
  • Surge Rating: 4000W (@ 1s)
  • Output Voltage: 120Vac±10%
  • Output Frequency (Configurable): 50Hz /60Hz
  • Rated Battery Input Voltage: 12VDC
  • Battery Input Voltage Range: 11VDC~16.5VDC
  • Maximum Continuous Battery Input Current: 166.6A
  • Inverter Efficiency: >92%
  • Full Load Efficiency: >89%

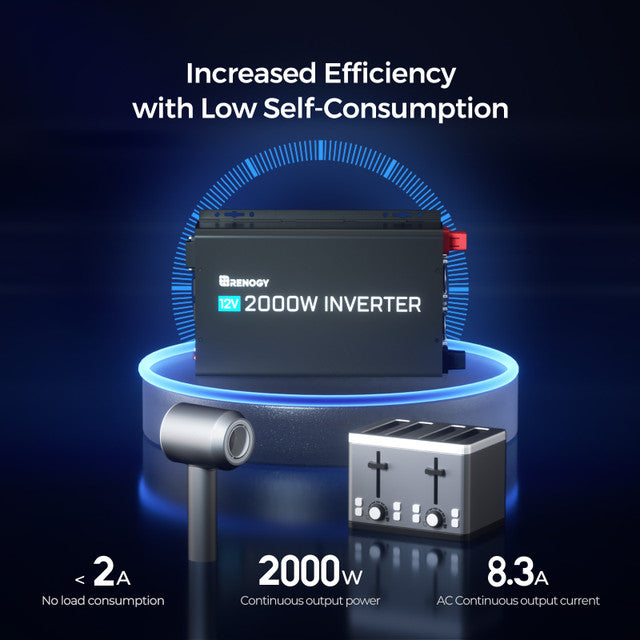

  • Power Consumption: <10W
  • ECO Power Consumption: ＜5W
  • Battery Overoltage Shutdown: 16.5VDC
  • Battery Low Voltage Alarm: 10.5VDC
  • Battery Low Voltage Shutdown: 10VDC

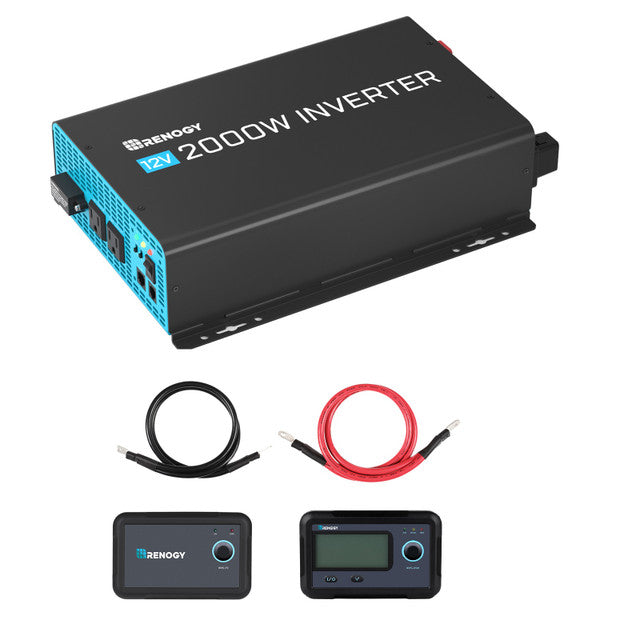

Wired Remote Data
  • Overall Dimensions: 2.8x4.3x1.3 in /70x110x31.8mm
  • Wired Length: 16.40ft
