2000W 24V Pure Sine Wave Inverter

Description

• Reliable power conversion with comprehensive equipment protection.

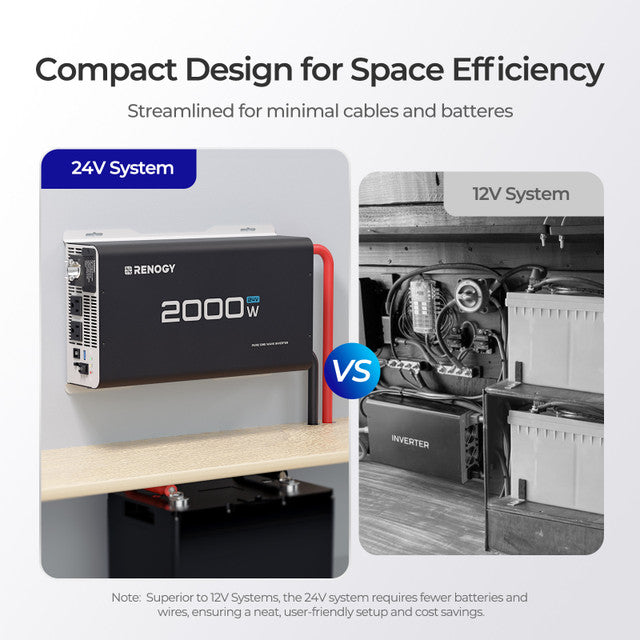

• Compact and lightweight inverters offer portability, space savings.
• Achieves over 92% energy efficiency with clear power output.
• Effortlessly monitor your inverter with the user-friendly remote control switch.
• Versatile adaptability for diverse equipment with 2 AC outputs and a terminal block.

Specifications

• AC Terminals: 2 x AC Sockets + Terminal Block
• DC Terminals: M8-1.25x25
• Operating Temperature: -4°F-131°F/-20℃ ~ 55℃
• Storage Temperature: -40°F-158°F/'﹣40℃～70℃
• Humidity: Max 95%, Non-condensing
• Cooling: Thermally Controlled Fans
• Enclosure Rating: IP20

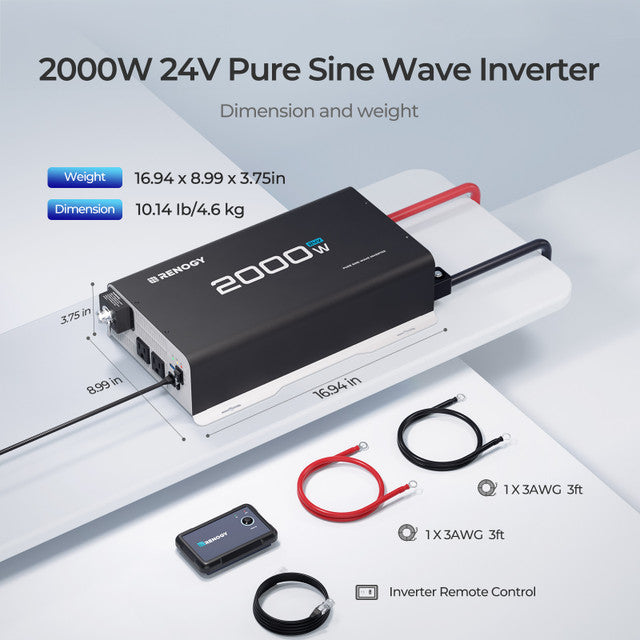

• Dimensions (LxWxH): 16.94 x 8.99 x 3.75in / 430.3 x 228.4 x 95.3 mm
• Weight: 10.14Ib/4.6kg
• Output Waveform: Pure Sine Wave

• Continuous Output Power: 2000W
• Continuous Output Current: 16.6A AC

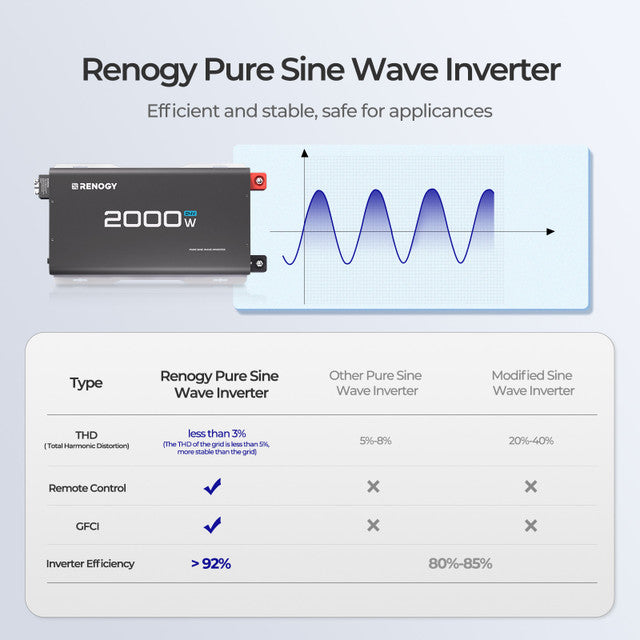

• Total Harmonic Distortion (THD): <3%
• Power Factor: 1
• Surge Rating: 4000W (@ 2s)
• Output Voltage: 120V AC±3%
• Output Frequency: 50/60Hz
• Rated Battery Input Voltage: 24VDC
• Battery Input Voltage Range: 23-30.7VDC
• Maximum Continuous Battery Output Current: 106A
• Inverter Efficiency: max 92%
• Full Load Efficiency: 89%
• Power Consumption: <19.2W
• Battery Overoltage Shutdown: 33.3VDC±0.5VDC
• Battery Low Voltage Alarm: 22.4VDC±0.5VDC
• Battery Low Voltage Shutdown: 21.8VDC±0.5VDC

• Front Plate Dimensions: 4.3x2.6x1.3 in /110x70x31.8mm
• Wired Length: 16.40ft

• EMC: FCC Part 15 ClassB
• Safety: UL458 (including Marine supplement) /CSA-C22.2 No 107.1
• Warranty: 1 Year
