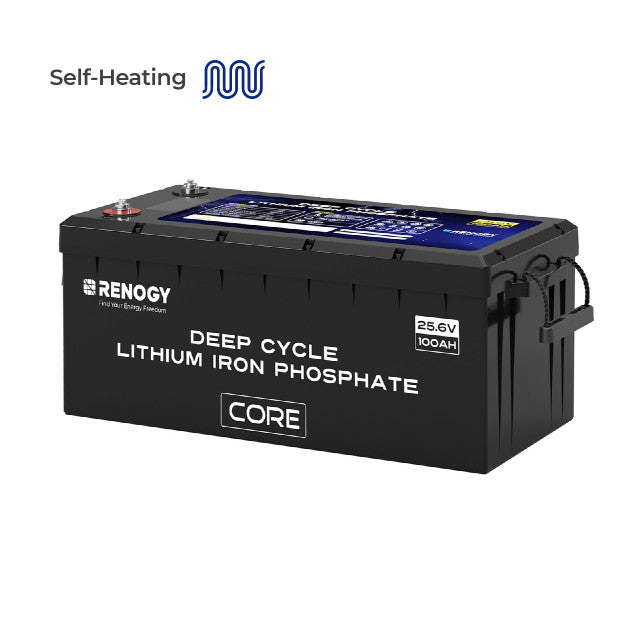

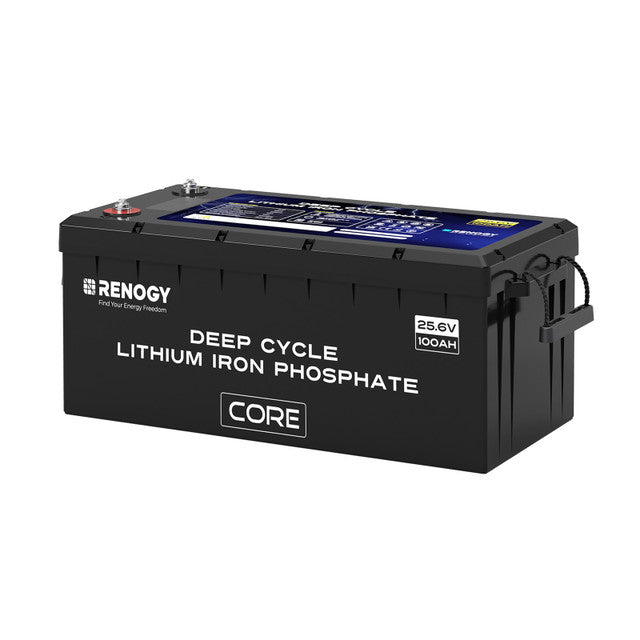

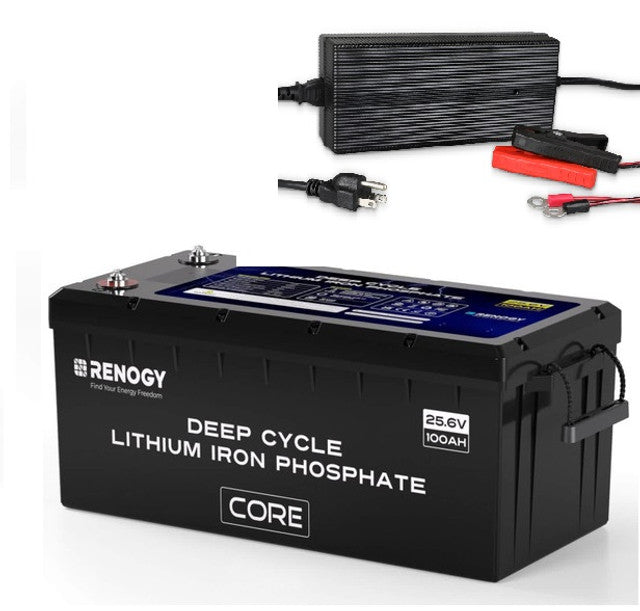

24V 100Ah Core Series Deep Cycle Lithium Iron Phosphate Battery

Description

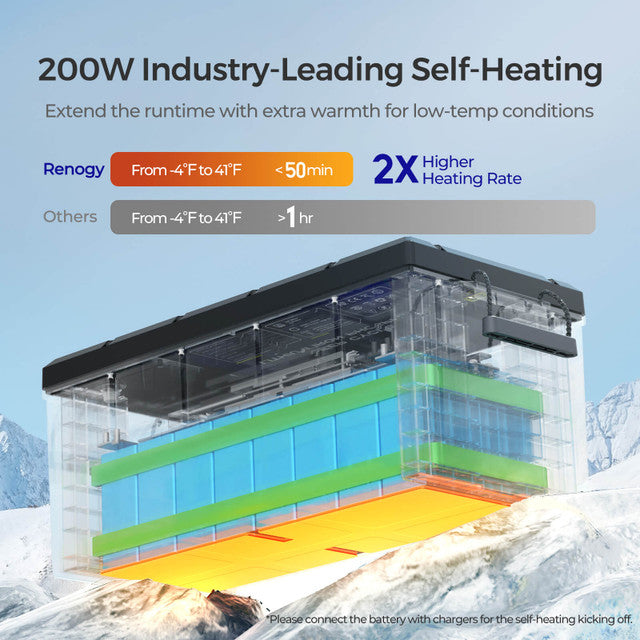

• Industry-leading 200W self-heating
• EV-class cells (Grade A) with 5000 cycles (80% DOD)

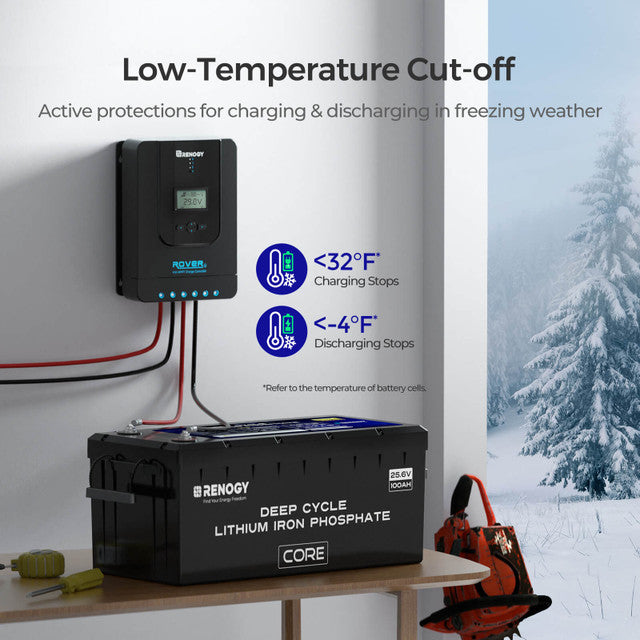

• Low-temp cut-off for safer charging & discharging
• Automatic cell balancing during charging
• Support series, parallel, or series-parallel connections.

Specifications

Battery

• Battery Type: Lithium Iron Phosphate
• Voltage: 24V
• Rated Capacity: 100Ah (0.5C, 25℃)
• Voltage Range: 20.0V to 29.2V
• Charge Voltage: 29.0V
• Maximum Charge Current: 100A
• Maximum Discharge Current: 100A
• Peak Discharge Current: 300A @ 5s
• Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)
• Charge Temperature Range: '-4°F to 131°F (-20°C to 55°C)
• Discharge Temperature Range: '-4°F to 140°F (-20°C to 60°C)
• Storage Temperature Range: '-13°F to 149°F (-25C to 65°C)
• Operation Relative Humidity: 10% to 95%

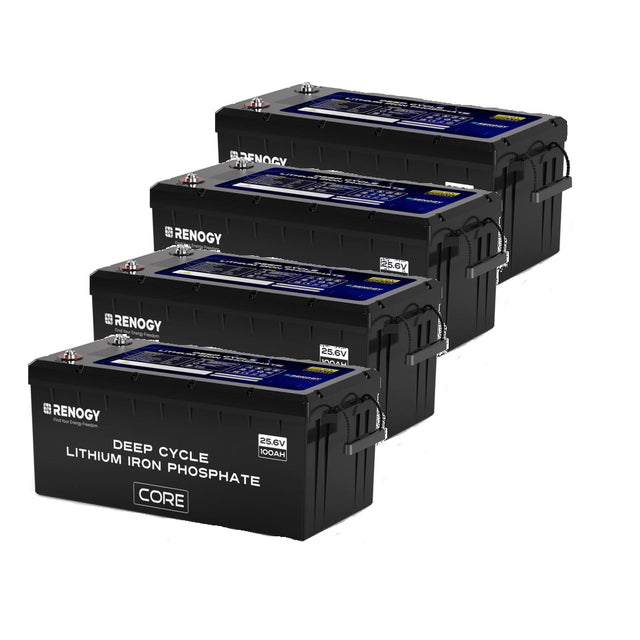

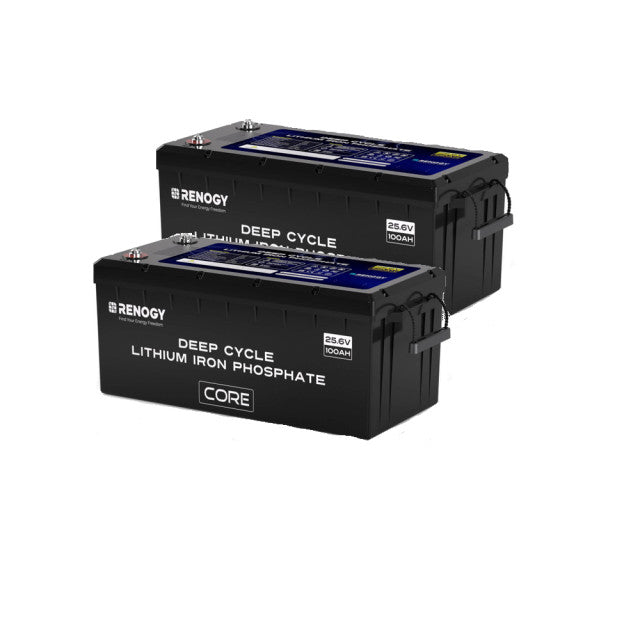

• Connection Method: Series (Up to 2) Parallel (Up to 8) Series & Parallel (2S8P)
• Terminal Bolt Size: M8 x 1.25 x 15 mm
• Recommended Terminal Torque: 10 N·m
• Housing Material: ABS & PC

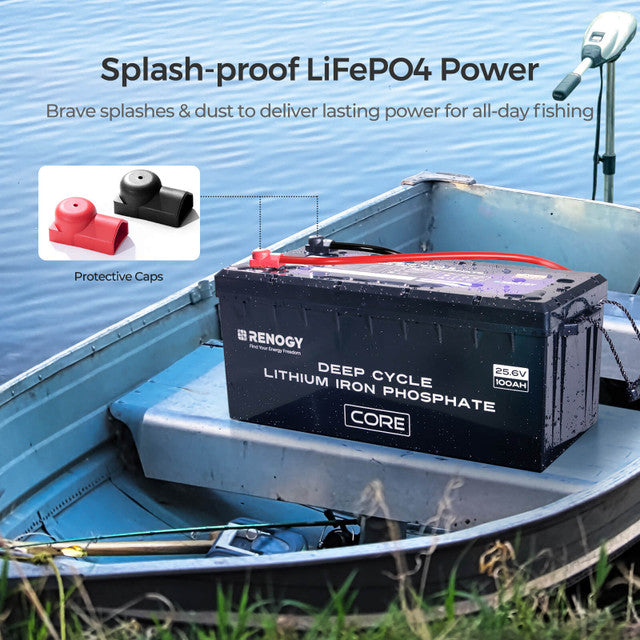

• Protection Rating: IP65
• Dimensions: 20.55 x 9.45 x 8.62 inch (522 x 240 x 219 mm)
• Weight: 46.3 lbs. (21.0 kg)

• Long Terminal Bolts (2): M8

• Material and Workmanship Warranty: 5 Years
• Certifications: UL, RoHS, MSDS, UN38.3, FCC , PSE, CE, UKCA
