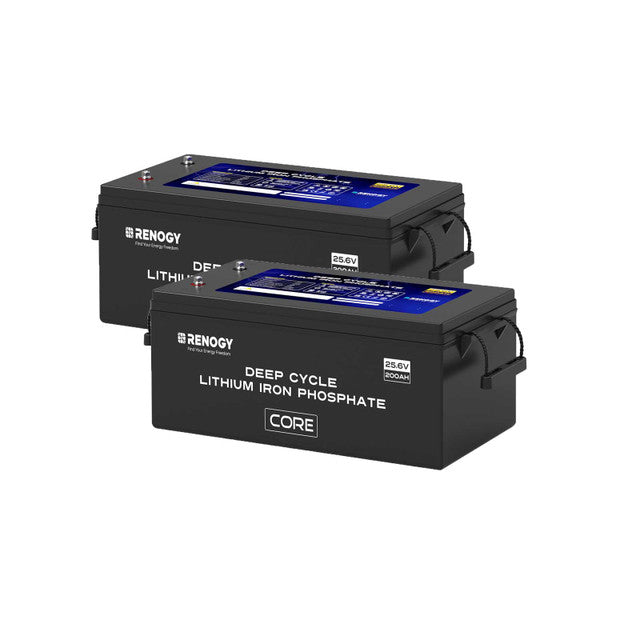

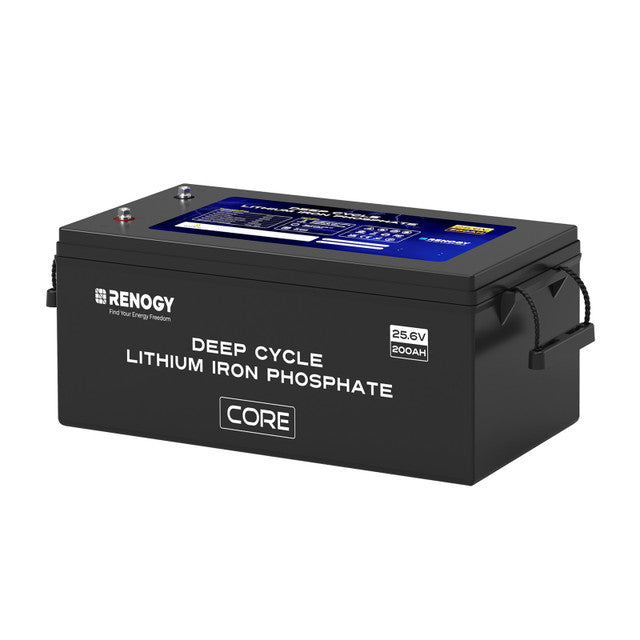

24V 200Ah Core Series Deep Cycle Lithium Iron Phosphate Battery

Description

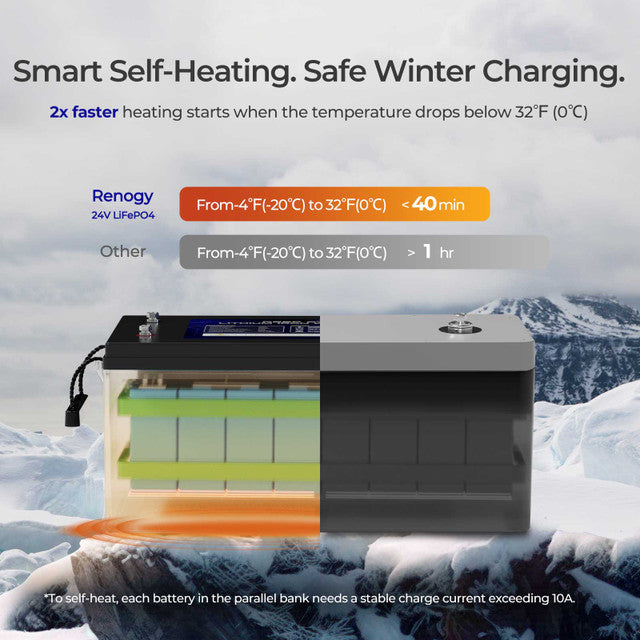

• Intelligent 2x faster self-heating.
• Light EV-class cells (Grade A) with a 15-year lifespan.

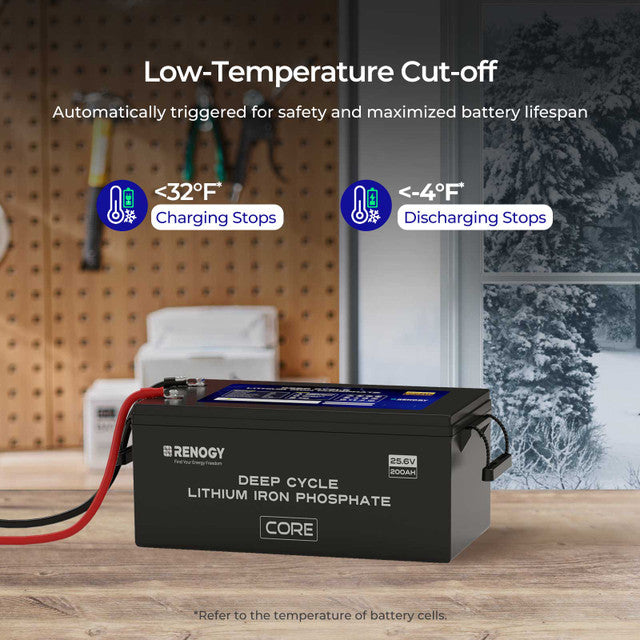

• Low-temperature cut-off for maximized battery lifespan.

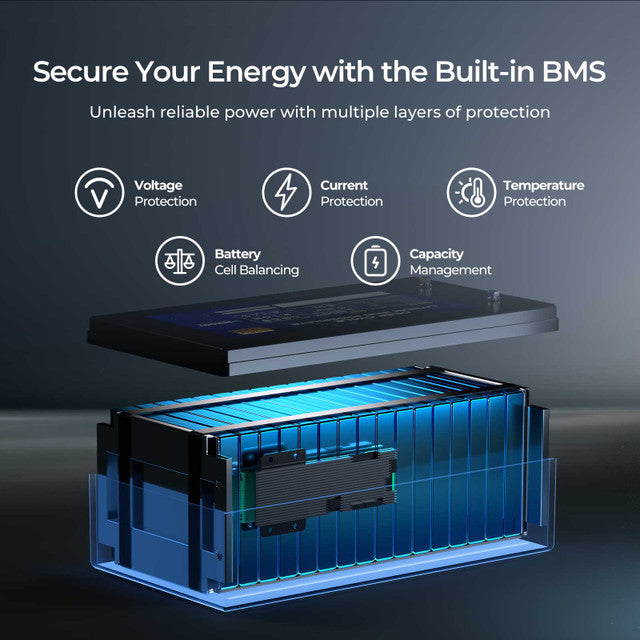

• Built-in BMS & IP65-rated.

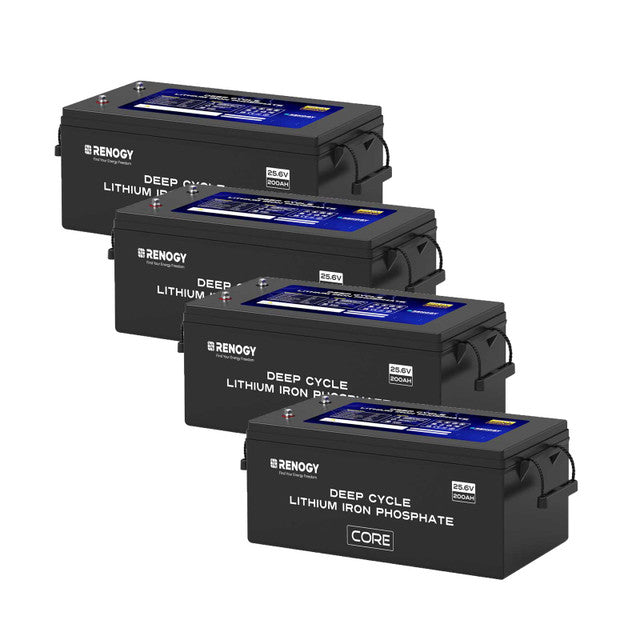

• Up to 40.96kWh expansion.

Specifications

• Battery Type: Lithium Iron Phosphate
• Voltage: 24V
• Energy: 5120Wh
• Rated Capacity: 200Ah (0.5C)
• Charge Voltage: 29.0V
• Maximum Charge Current: 200A
• Maximum Discharge Current: 200A
• Peak Discharge Current: 390A@5s
• Cycle Life (0.5C, 25℃): 5000 Cycles (80% DOD)

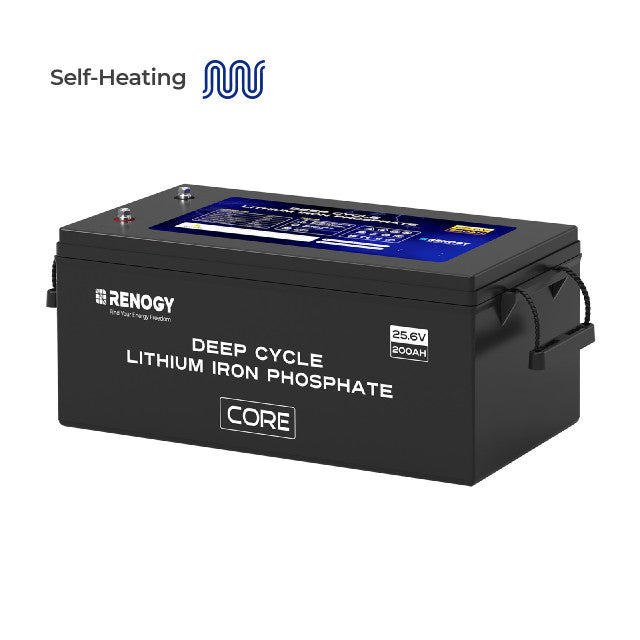

• Automatically Self-heating: Yes
• Charge Temperature Range: '-4°F to 131°F (-20°C to 55°C)
• Discharge Temperature Range: '-4°F to 140°F (-20°C to 60°C)
• Storage Temperature Range: '-13°F to 149°F (-25°C to 65°C)
• Operation Relative Humidity: 10% to 95%
• Connection Method: Series & Parallel (2S4P)
• Terminal Bolt Size: M8 x 1.25 x 15 mm
• Recommended Terminal Torque: 88.5 inch·lbs to 106.2 inch·lbs / 10 N·m to 12 N·m
• Housing Material: ABS
• Protection Rating: IP65
• Dimensions: 20.55 x 10.55 x 8.62 in / 522 x 268 x 219 mm
• Weight: 88.6 lbs. / 40.2 kg

• Long Terminal Bolts x 2: M8*1.25*20 mm
• Insulating Sleeve × 2: Yes

Warranty

• Material and Workmanship Warranty: 5 Years

• MSDS, UN38.3, FCC, CE, PSE, and UKCA: Yes
