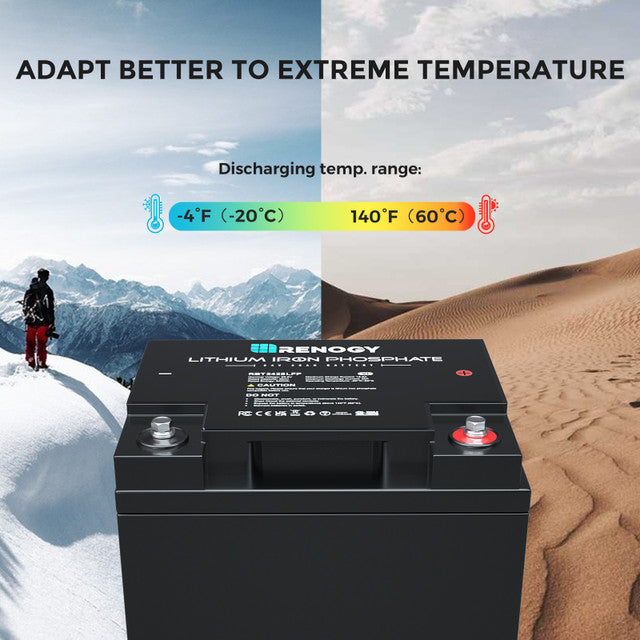

Exceptional lifespan with more than 2000 cycles (80% DOD), 4 times of lead-acid battery. Wide discharging temperature range from -4°F to 140°F, IP65 waterproof. Fearless of extreme climates, back up your wild adventures.

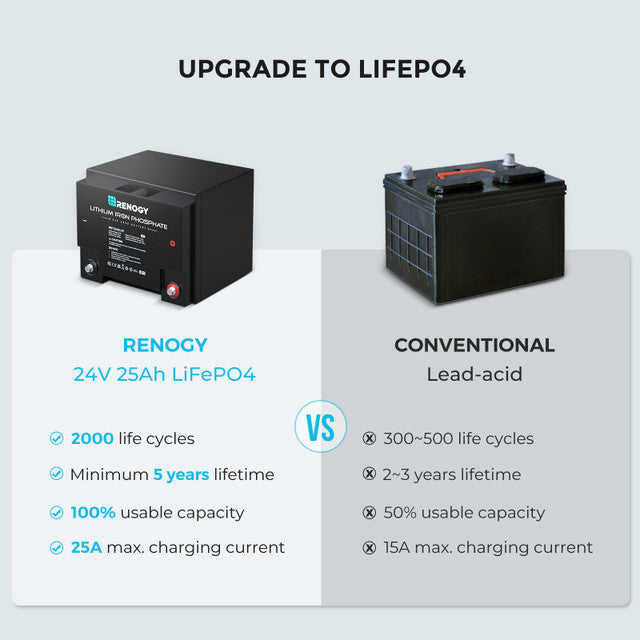

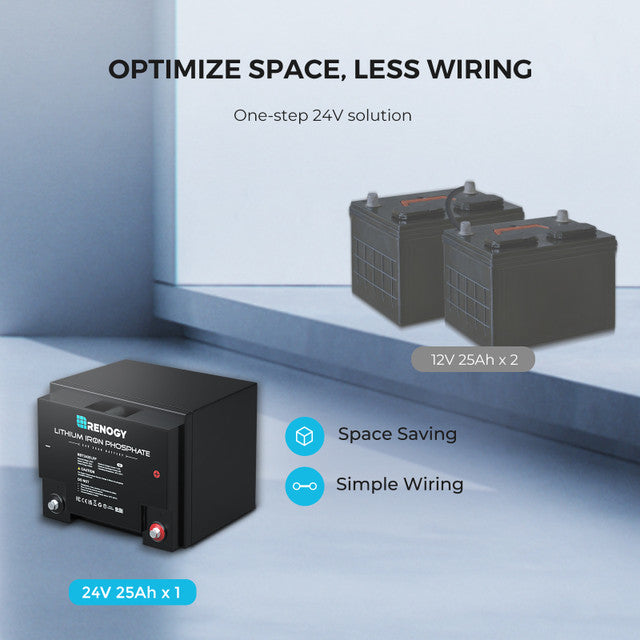

A space-saving choice for your 24V power system. Upgrades from lead-acid to lithium seamlessly with a greater energy density, 100% usable capacity, and a faster-charging speed.
Specifications
Electrical Specifications
Battery Type:Lithium Iron Phosphate
Rated Capacity:25Ah
Nominal Voltage:25.6 V
Voltage Range:20-29.6V
Energy:640Wh
Cycle Life(0.5C,25℃):2000 Cycles at 80% DOD

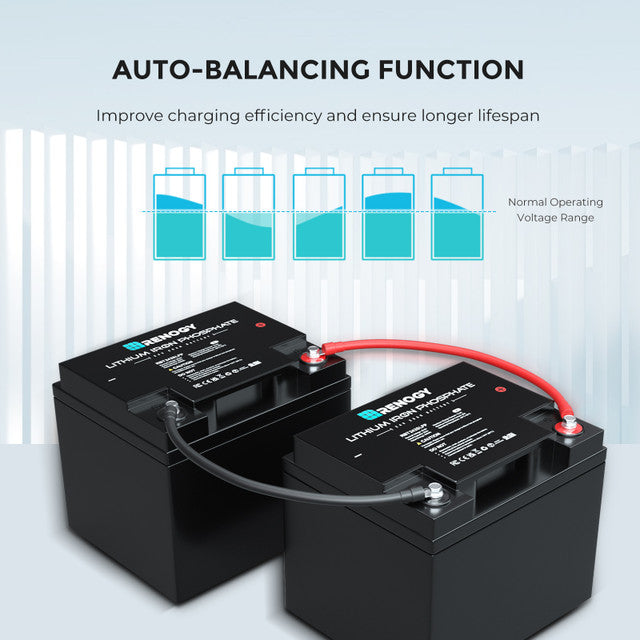

Connection Method:Parallel (Up to 8)
Automatically Self-heating Function:No
Mechanical Specifications

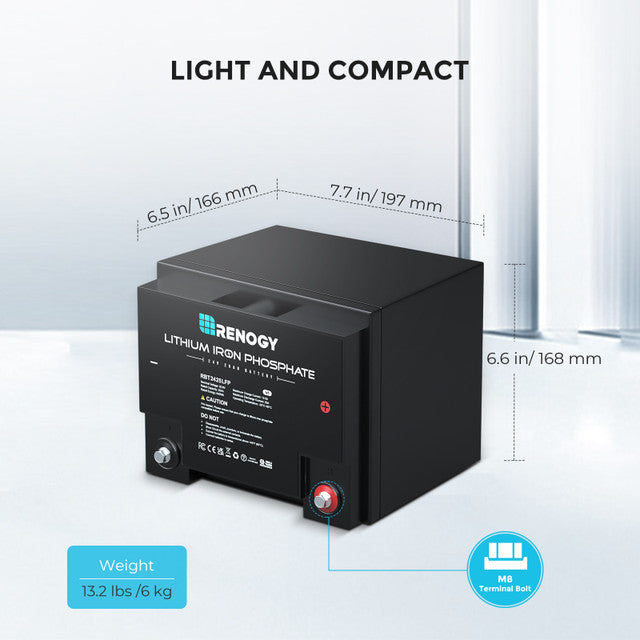

Dimensions:7.7 x 6.5 x 6.6 in / 197 x 166 x 168 mm
Weight:13.2 lbs. (6 kg)
Protection Rate:IP65
Housing Material:ABS
Charging Parameters
Charge Voltage:29.0 ± 0.2V

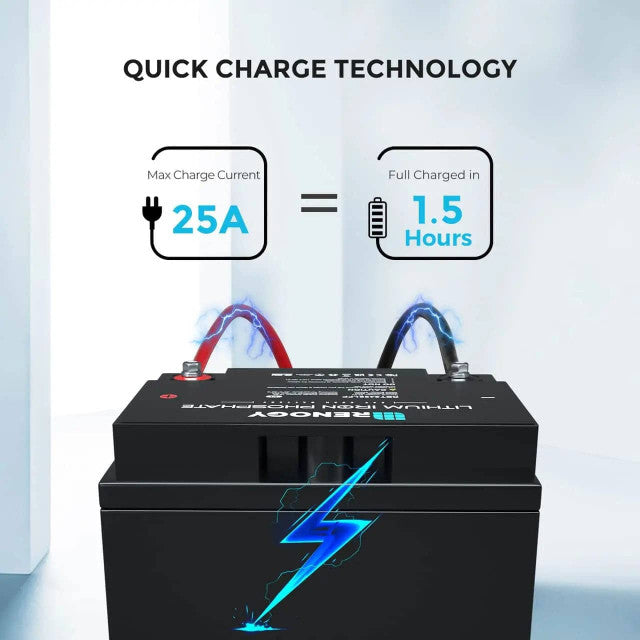

Maximum Continuous Charge Current:25A
Charge Cut-off Voltage:29.2V
Discharging Parameters
Maximum Continuous Discharging Current:25A
Discharge Cut-off Voltage:20V
Temperature Parameters
Standard Operation Temperature:73.4 ± 9℉ / 23 ± 5℃
Storage Temperature:Less than 1 year: 32~77℉ / 0~25℃, Less than 3 months: 14~95℉ / -10~35℃
