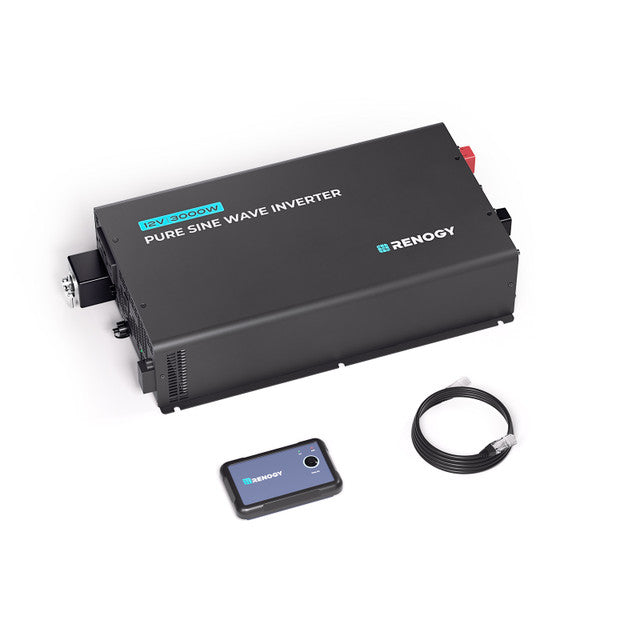

3000W 12V Pro Pure Sine Wave Inverter with EcoSleep Mode

Description

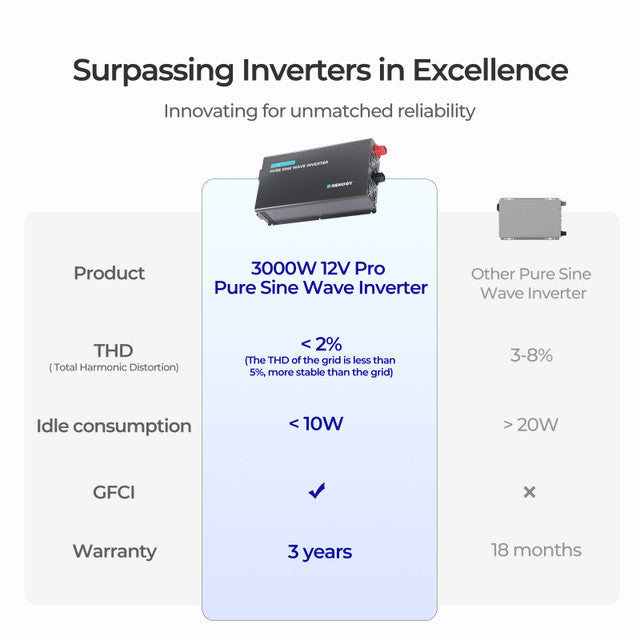

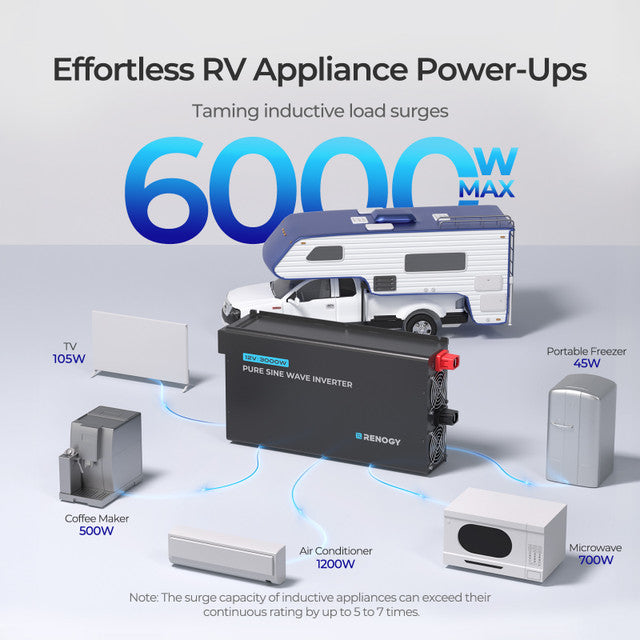

• Continuous power 3000W,peak power boosts to 6000W for inductive loads, THD < 2%

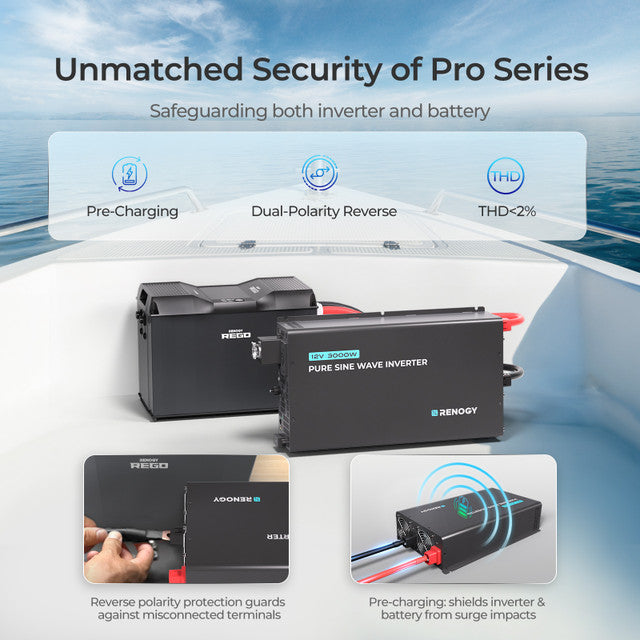

• Pre-charging, safeguarding battery from peak current surges.
• Dual-polarity reverse connection(RC)protection, guards against misconnection damage.

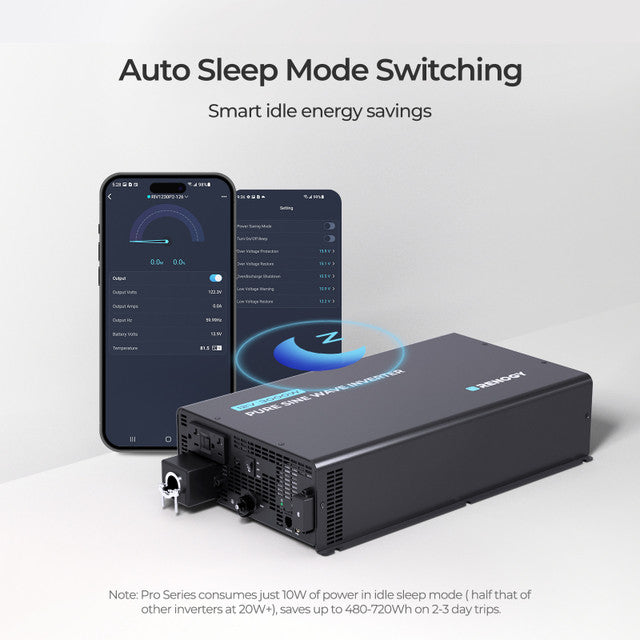

• Intelligent ecosleep mode conserves energy, idle consumption < 10W.
• Bluetooth & RV-C (with Renogy M1) for real-time monitoring, with 3-year warranty.

Specifications

• Rated Output Power: 3000W
• Surge Power (100ms): 6000W
• Nominal output Voltage RMS: 120Vac ±3%
• Outuput Frequency: 60Hz ± 0.3Hz
• Output Wave Form: Pure Sine Wave
• AC Output Sockets: 2* AC Sockets + 1 DIY AC Terminal
• Nominal Input Voltage: 12 VDC
• Input Voltage Range: 11-15.5Vdc
• Peak Efficiency: ≥90%
• Full-load Efficiency: ≥87%
• Short Circuit Protection: Software Protection
• THD: ＜3% （Resistance load）
• No load power Consumption（Sleep）: Normal:<10 W
• Overload Capacity: ≥1min @120%; ≥5s @150%; ≥100ms @200%

• Communication: RS485 /RV-C
• Mobile APP: Yes
• Display Control Panel: Renogy one Core
• Battery Types: GEL, AGM, SLA, FLD, LI
• Operating Temperature Range: Full load: -20℃ ~ 40℃; Down load: 40 ℃~ 50 ℃
• Storage Temperature: ﹣40℃～70℃
• Humidity: 0% ~ 95%
• Noise: <55dB

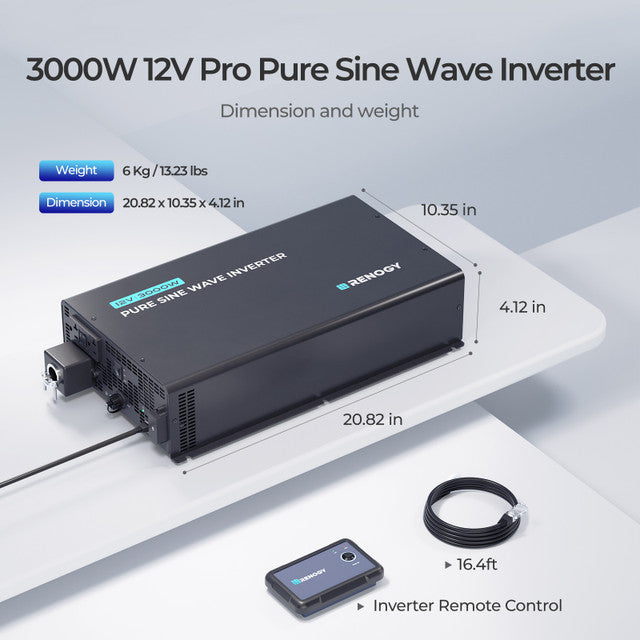

• Dimensions: 20.82 x 10.35 x 4.12 in
• Weight: 6 Kg (13.228lb)

• List dimensions: 2.8 x 4.3 x 1.3 in / 70 x 110 x 31.8 mm
• Wire length: Approx 16.4ft

• EMC: FCC Part 15 ClassB

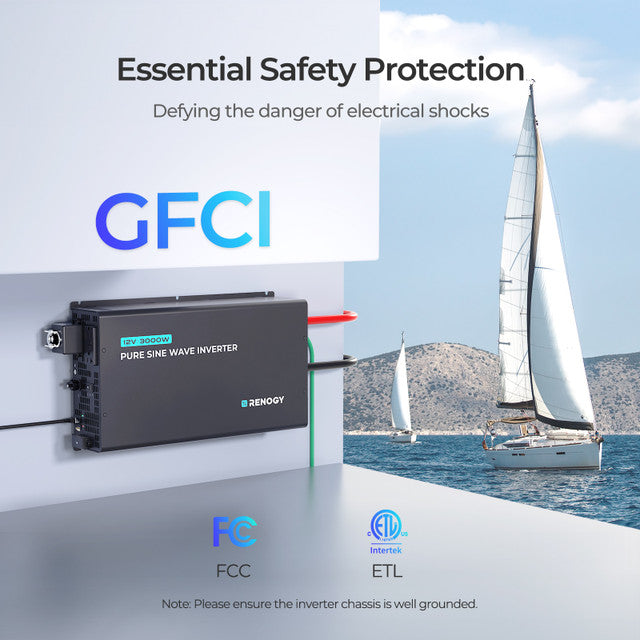

• Safety: UL458 (including Marine supplement) /CSA-C22.2 No 107.1
• Warranty: 3 Years
