Renogy

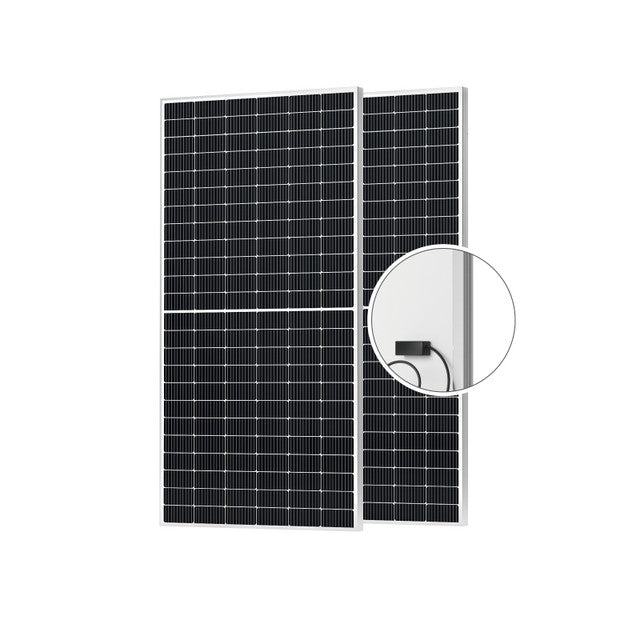

550 Watt Monocrystalline Solar Panel Kit

$919.99 USD

Sale Sold out

Taxes included.

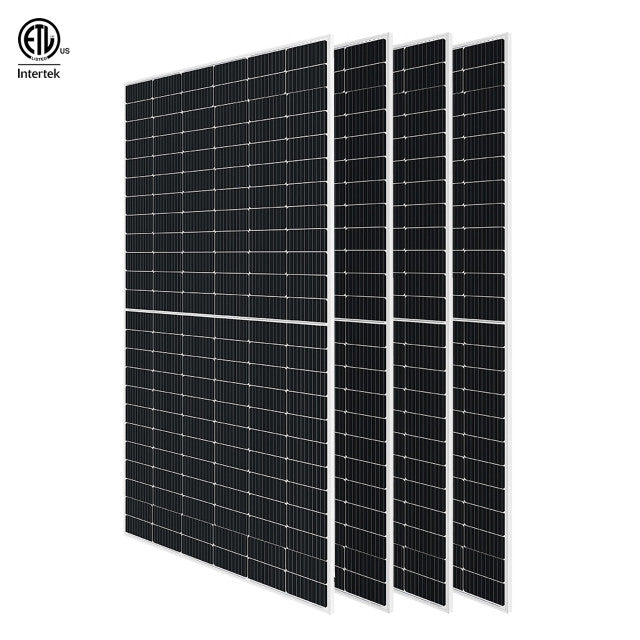

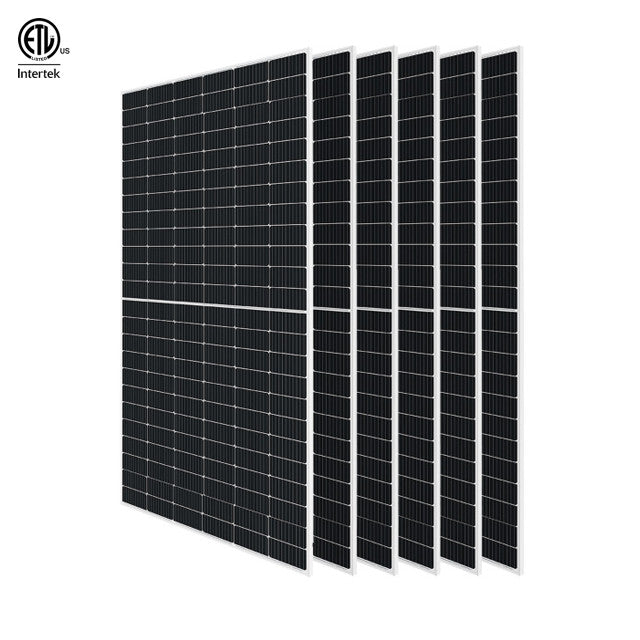

Quantity 2 Pieces 4 Pieces 6 Pieces

Quantity

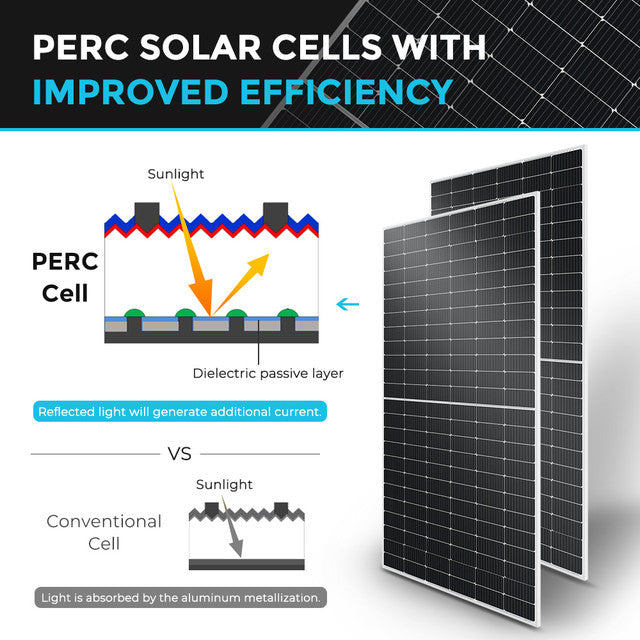

- Engineered with high-efficiency PERC cells

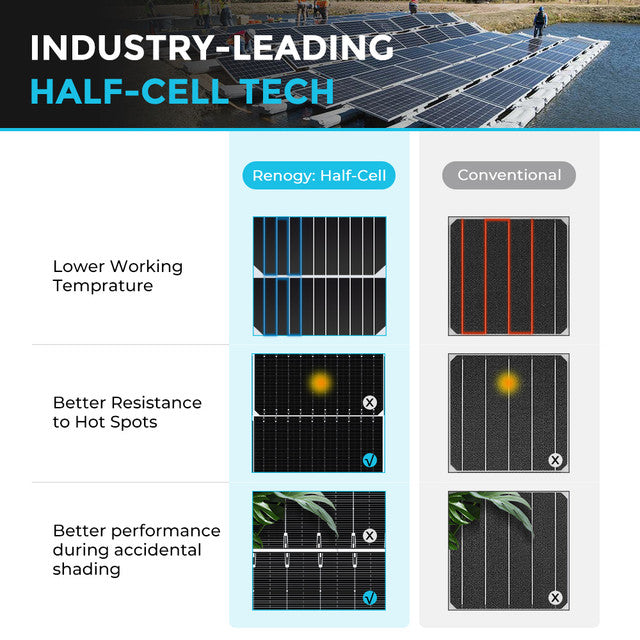

- This half-cut panel performs excellently in low light situation

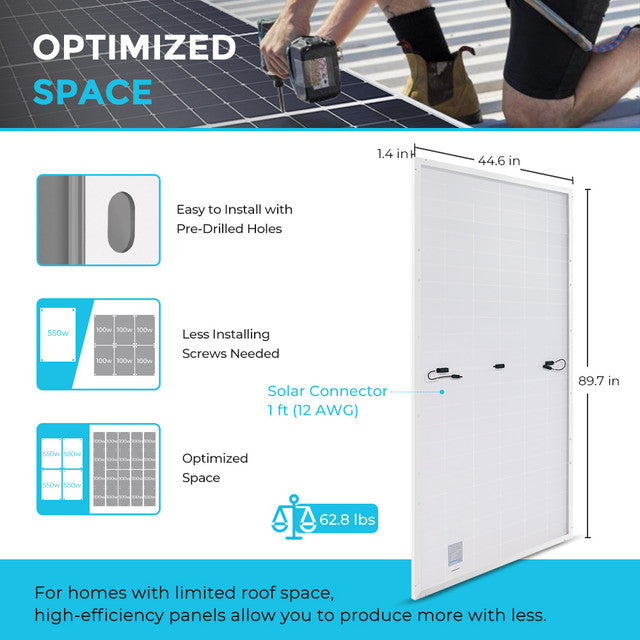

- Space and Installation Optimization

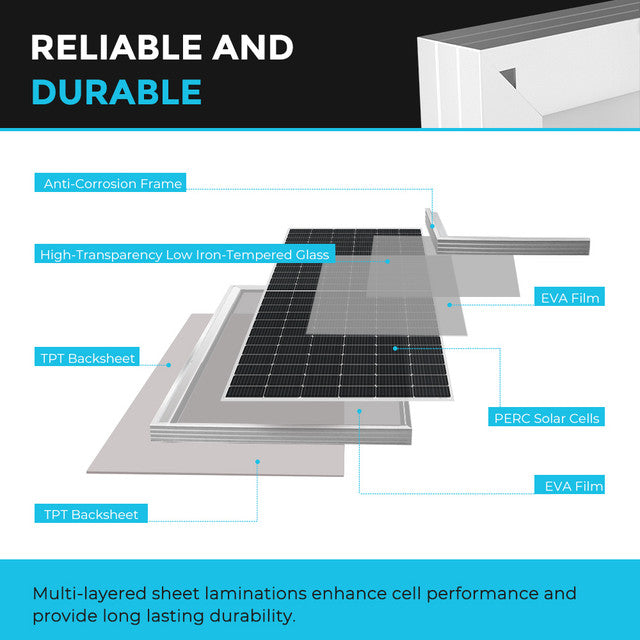

- Corrosion-resistant aluminum frame provides extended outdoor use

- Claim up to 30% of your home's new solar system costs

Built-In Components:

Output Cables: 12 AWG (1ft per cable)
Cell Type: PERC Monocrystalline (7.2 x 3.6 in)
Number of Cells: 144 (6 x 24), 72 cells in series
Junction Box: IP65 / IP68 (1m, 1h) rating
MC4 Solar Connectors: IP65 / IP68 (1m, 1h) rating

Specifications:

Maximum Power at STC: 550W

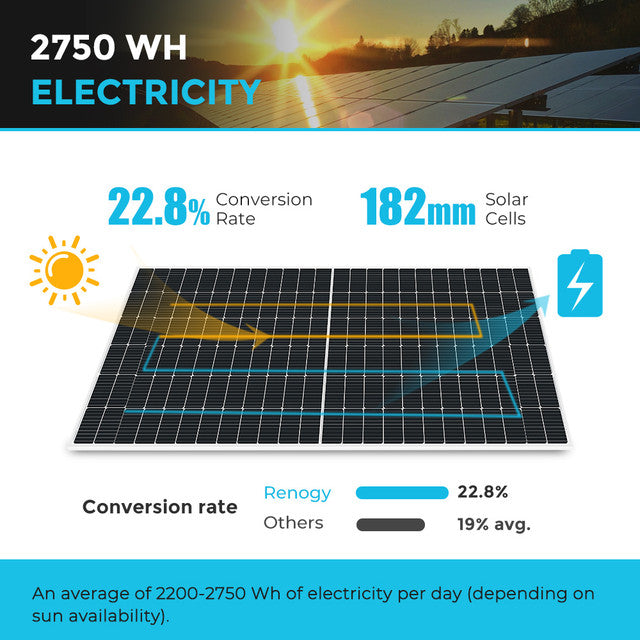

Cell Efficiency: 22.8%
Optimum Operating Voltage (Vmp): 41.97V
Open-Circuit Voltage (Voc): 49.95V
Optimum Operating Current (Imp): 13.11A
Short-Circuit Current (Isc): 14.05A
Operating Temperature: -40°F to 185°F
Maximum Series Fuse Rating: 25A
Maximum System Voltage: 1500V DC (UL)
Rated Current (MC4 Solar Connectors): 35 A
Weight: 62.8 lbs (28.5 kg)
Dimensions: 89.7 x 44.6 x 1.4 in (2279 x 1134 x 35 mm)
Maximum AWG Size Range (MC4): 10 AWG
Certifications: CE, ISO, ETL
Material and workmanship warranty: 10 year material and workmanship warranty
Performance: 5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty
