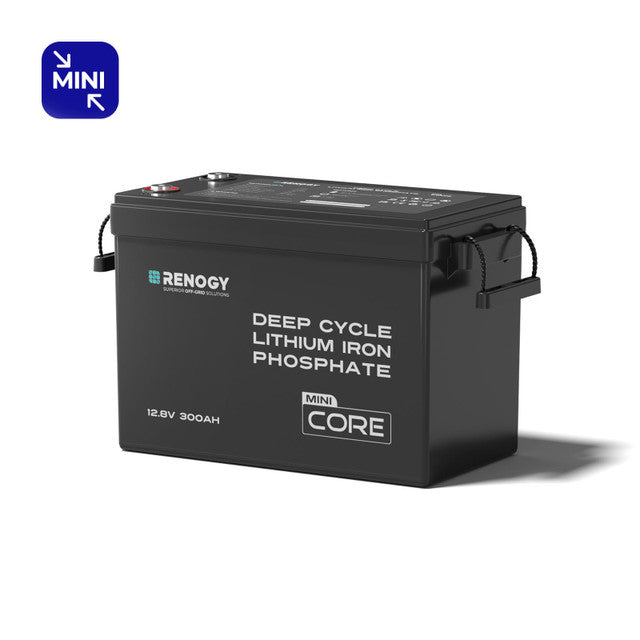

Core Mini - 12.8V 300Ah Lithium Iron Phosphate Battery w/ Low-Temperature Protection

Description

• Lighter than ever at 55.1 lb. 57% lighter than 12V 200Ah lead-acid.
• Low-temperature protection (charge <32°F, discharge < -4°F).
• Compact design! 31% smaller than other 12V 300Ah LFP batteries.
• 5-year warranty. Certified by FCC, CE, ROHS, UKCA, and more.
• Grade-A prismatic LiFePO4 cells offer 5000+ cycles at 80% DOD.
• 3840Wh capacity. Max 4P4S, expandable to 61.44kWh.

Specifications

Battery

• Battery Type: Lithium Iron Phosphate
• Nominal Voltage: 12.8V
• Rated Capacity: 300Ah (0.5C, 25℃)
• Voltage Range: 10V to 14.8V
• Maximum Charge Current: 150A
• Maximum Discharge Current: 200A
• Peak Discharge Current: 380A@10s
• Cycle Life (0.5C, 25℃): 5000 Cycles (80% DOD)
• Charge Temperature Range: 32°F to 140°F (0°C to 60°C)
• Discharge Temperature Range: -4°F to 149°F (-20°C to 65°C)
• Storage Temperature Range: -4°F to 140°F (-20°C to 60°C)
• Operation Relative Humidity: 10% to 95%
• Connection Method: Series & Parallel (4S4P)
• Terminal Bolt Size: M8 x 1.25 x 12 mm & M8 x 1.25 x 16 mm
• Recommended Terminal Torque: 70.8 inch·lbs / 8 N·m
• Protection Rating: IP65
• Dimensions: 15.12 x 7.64 x 9.96 in / 384 x 194 x 253 mm
• Weight: 55.1 lbs / 25.0 kg

Accessories

• Long Terminal Bolts (2): 2 x M8 x 1.25 x 16 mm

Warranty

• Material and Workmanship Warranty: 5 Years

Certifications

• MSDS, UN38.3, FCC, CE, PSE, RCM, RoHS, UKCA: Yes
