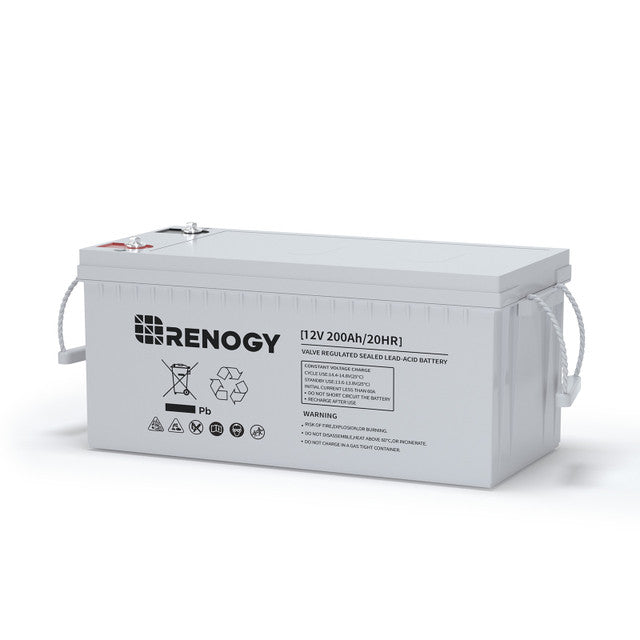

Deep Cycle AGM Battery 12 Volt 200Ah

Description

• 230K+ units sold globally. Widely trusted by customers worldwide.
• Higher chemical stability. No internal troubleshooting needed.

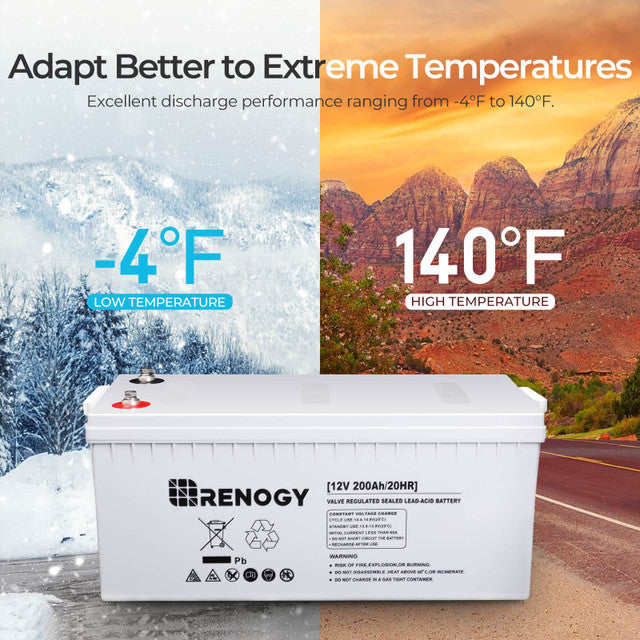

• Wider discharge temperature range: -4 to 140°F/ -20 to 60°C.
• 2000A (5 seconds) max discharge current to start most appliances.

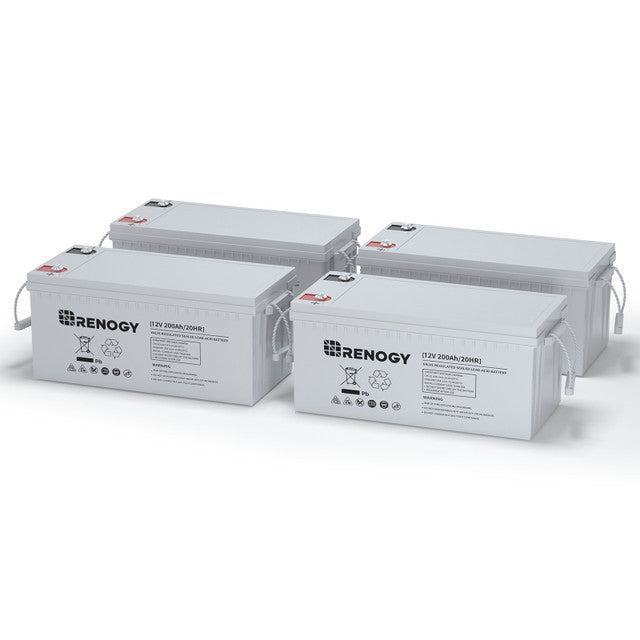

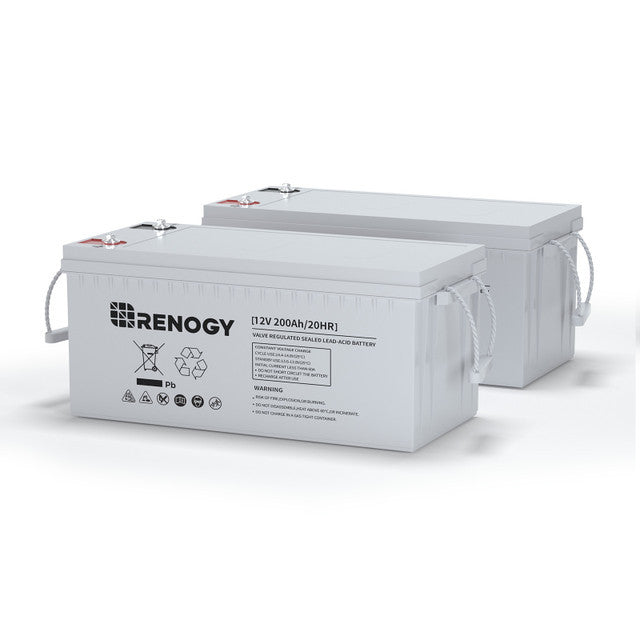

• Support series (No limitation), parallel (Up to 4P) connections.

Specifications

Electrical Specs

• Battery Type: AGM
• Rated Capacity: 200Ah (20 Hour Rate to 10.5V)
• Nominal Voltage: 12V
• Cycle Life: 500 Cycles (50% DOD)

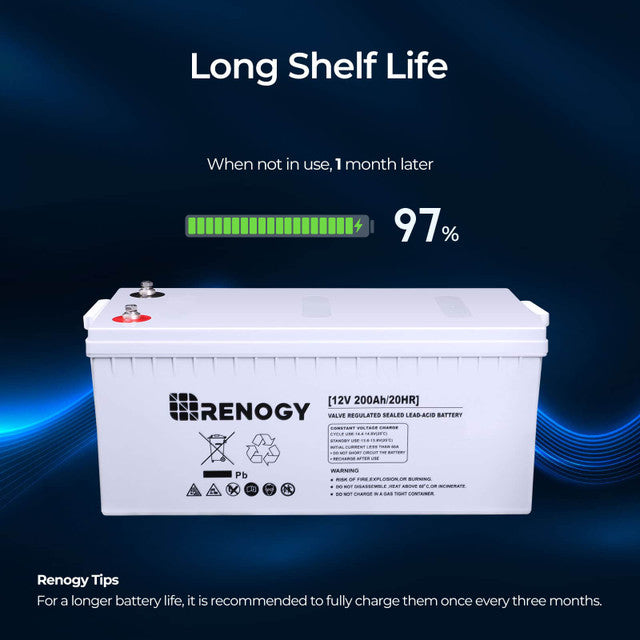

• Self-discharge Rate (77°F/25°C): ＜3% / month
• Connection Method: In Series, and In Parallel (up to 4)
• Automatically Self-heating Function: No

Mechanical Specs

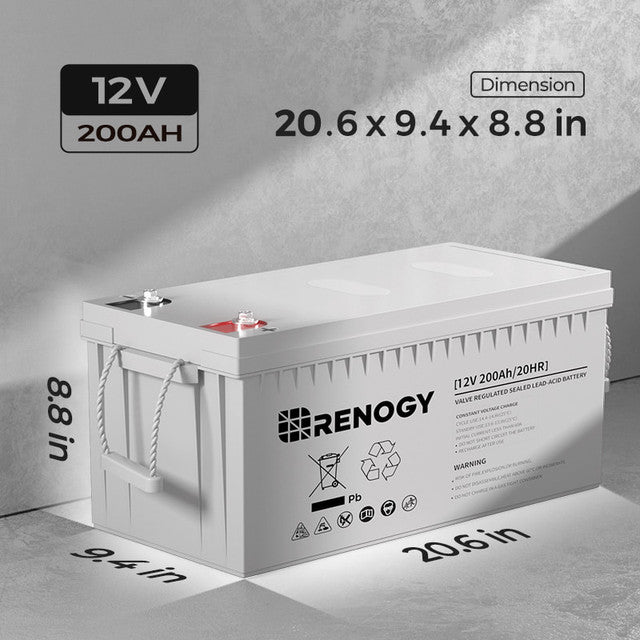

• Dimensions: 20.6 x 9.4 x 8.8 in / 522 x 240 x 224 mm
• Weight: 127.9 lbs / 58 kg
• Housing Material: ABS

Charging Parameters

• Cycle Use Voltage: 14.4V~14.8V
• Float Charge Voltage: 13.6V~13.8V
• Maximum Continuous Charging Current: 60A

Discharging Parameters

• Maximum Discharging Current: 2000A (5 seconds)

Temperature Parameters

• Standard Operation Temperature: 77°F±9°F（25°C±5°C）
• Storage Temperature: -4~140°F/ -20°C~60°C
• Charge Temperature: 32~122°F/ 0~50°C
• Discharge Temperature: -4~140°F/ -20~60°C

Communication

• Built-in Biuetooth: No
• Communication Port: No

Accessories

• Bolts: M8 x2

Warranty

• Material and workmanship warranty: 2-year

Certifications

• Certifications: MSDS
