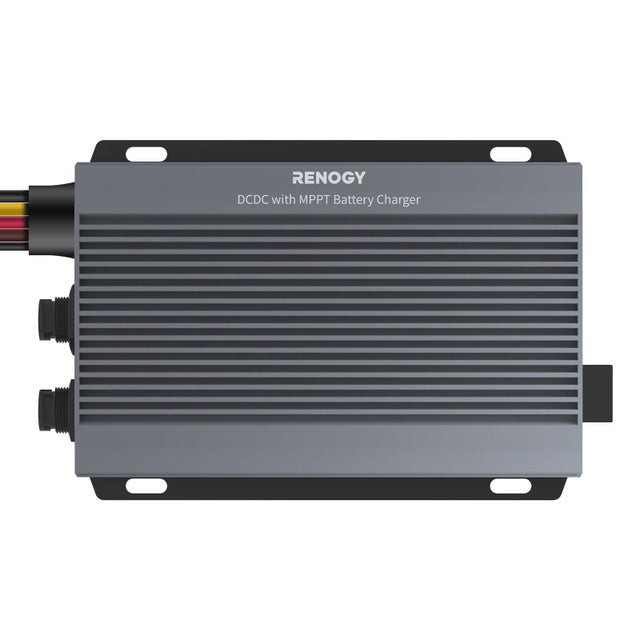

Renogy 12V/24V IP67 50A DC-DC Battery Charger with MPPT

Description

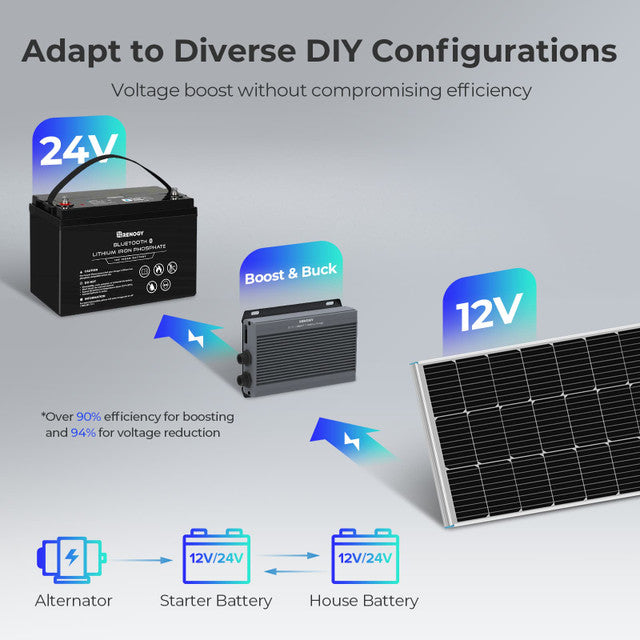

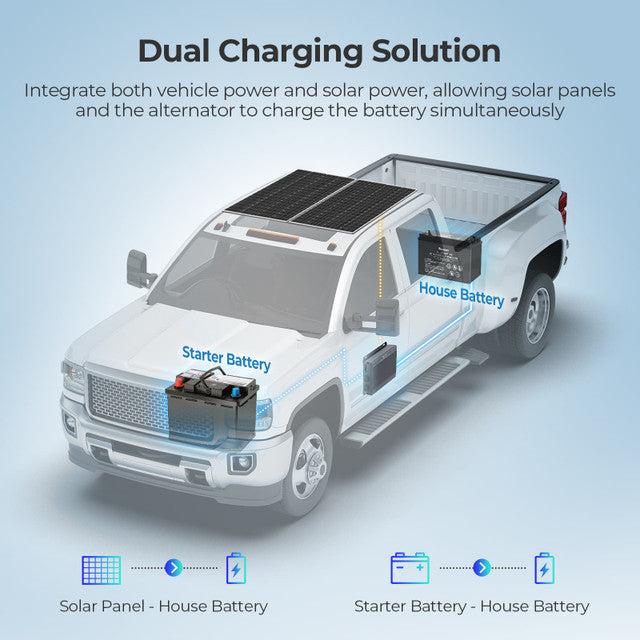

• A dual charging solution with 12V/24V boost and buck logic.

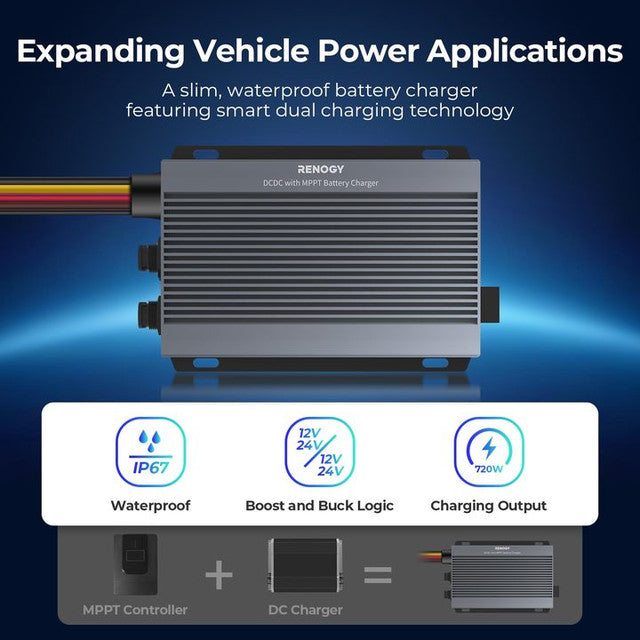

• Compact & lightweight with IP67 waterproof rating.

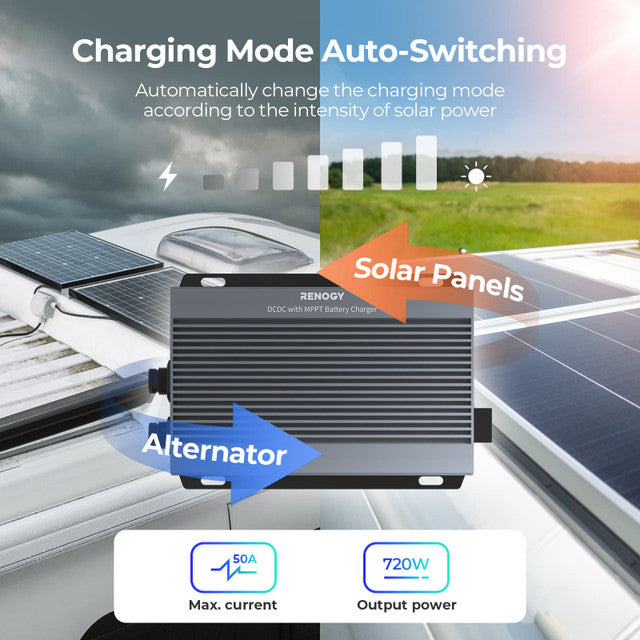

• Auto-switching charging mode while prioritizing green power.
• CE, FCC, RoHS certified with comprehensive test reports.
• Bluetooth Energy Monitoring with wired CAN communication.

Specifications

• System Voltage: 12V/24V - 12V/24V
• Solar Input Voltage: 50 VDC
• Output Voltage: 9-32 VDC
• Alternator Input: 9-32 VDC
• Maximum Output Current Rating: 12V@50A ; 24V@25A
• Output Power: 720W
• Battery Types: AGM/SLD , GEL ,FLD ,LI,USER
• Input Fuse Rating: 75A-100A
• Output Fuse Rating: 75A-100A
• MPPT Tracking Efficiency: 99%
• MPPT Charging Efficiency: 97%
• Conversion Efficiency: 94%
• Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium) and 0mV / ℃ / 2V; no compensation (Lithium)
• Idle Power Consumption: ＜100mA

• Model: RBC2125DS
• Terminal Range: 8AWG-4AWG
• Communication Protocol: Modbus ; RV-C
• Operating Temperature Range: -31℉ to 176℉/-35℃ to 80℃
• Storage Temperature Range: -40℉ to 176℉/-40℃ to 80℃
• Humidity: 0%-95%, No Condensation
• Maximum Operating Altitude: 3500m
• Enclosure Rating: IP67
• Dimensions: 7.01 x 4.78 x 1.47 in/178.2 x 121.5 x 37.5mm
• Weight: 4.10 lb / 1.86 kg
• Certification: UL1741;CE;RoHS;FCC Part 15 class B
• Protection: Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection/Overcurrent Protection

• Material and workmanship warranty: 3-year material warranty
