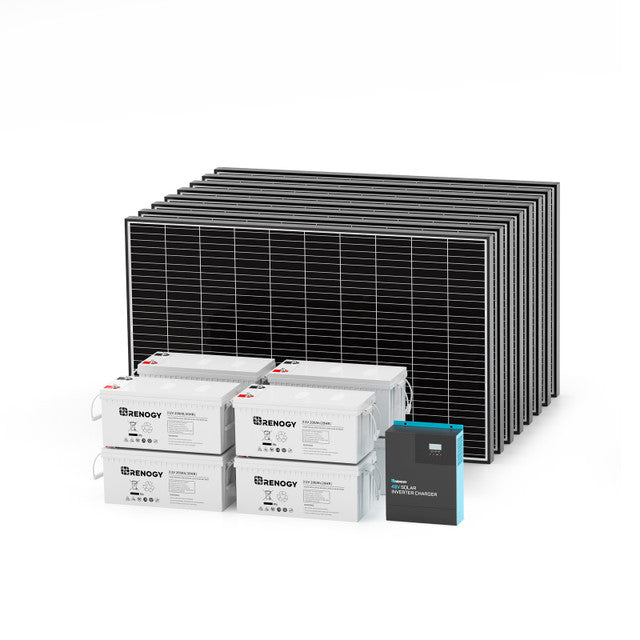

Renogy 2.5kW Essential Plus Kit

Description

• 2.5kW latest generation high-efficiency PERC panels
• Reliable 19.2kWh battery bank
• All-in-one 48V 3500W solar inverter charger
• DC circuit protection
• Bluetooth monitoring

Specifications

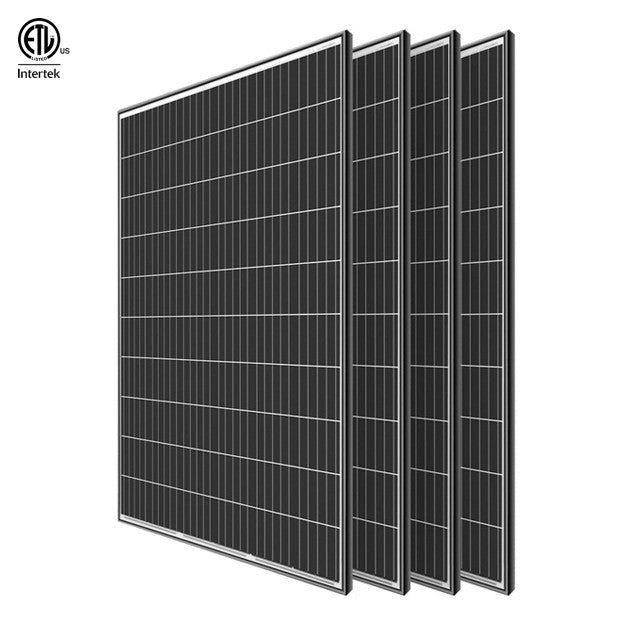

320 Watt Monocrystalline Solar Panel

• Maximum Power at STC: 320W
• Optimum Operating Voltage (Vmp): 32.7V
• Open-Circuit Voltage (Voc): 40.1V
• Optimum Operating Current (Imp): 9.79A
• Short-Circuit Current (Isc): 10.36A
• Operating Temperature: -40°F to 185°F
• Cell Efficiency: 21%
• Maximum System Voltage: 1000V DC (UL)
• Maximum Series Fuse Rating: 15A
• Weight: 39.7lbs
• Dimensions: 65.6 x 39.4 x 1.4 in
• Certifications: CE, ISO, UL

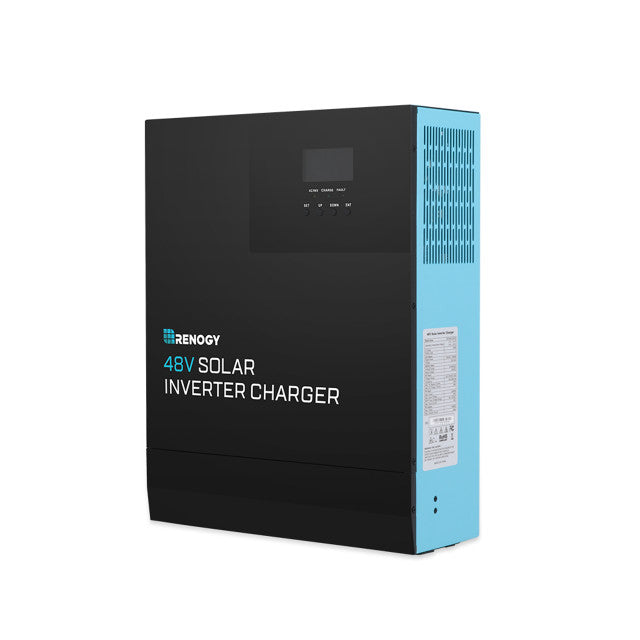

Renogy 48V 3500W Solar Inverter Charger with 80A.145V MPPT

• Output Waveform: Pure Sine Wave
• Continuous Output Power: 3500W
• Peak Power Rating: 7000W
• Output Voltage: 120VAC±5%
• Output Frequency: 50 Hz ± 0.3% 60 Hz± 0.3%
• Input Voltage / Rated Battery Voltage: 48VDC (minimum start-up voltage 44V)
• Charge Controller Type: MPPT
• Maximum Input Power: 4800W
• Maximum Input Current: 50A
• Dimensions: 16.8*12.7*4.9 in / 426*322*124 mm
• Weight: 23.8 lbs /10.8kg

12 Volt 200Ah Deep Cycle AGM Battery

• Battery Type: AGM
• Rated Capacity: 200Ah (20 Hour Rate to 10.5V)
• Nominal Voltage: 12V
• Internal Resistance: Approx. 3.5mΩ
• Connection Method: In Series, and In Parallel (up to 4)
• Dimensions: 20.6 x 9.4 x 8.8 in / 522 x 240 x 224 mm
• Weight: 127.9 lbs / 58 kg
• Standard Operation Temperature: 77°F±9°F（25°C±5°C)

Warranty Information

• Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty
• Accessories: 1-year material and workmanship warranty

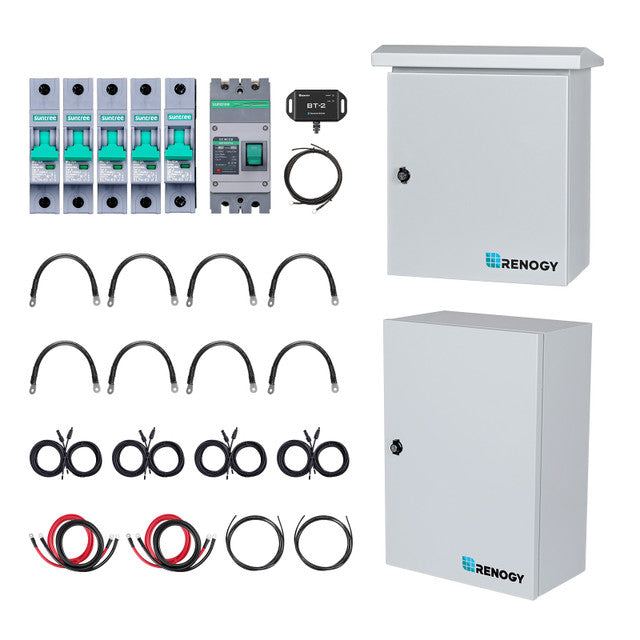

Kit Include

• 2 x 4 Pieces of 320 Watt Monocrystalline Solar Panel
• 4 x 40ft 10AWG Solar Panel to Charge Controller Adaptor Kit (Pair)
• 1 x 5 Strings Solar Combiner Box

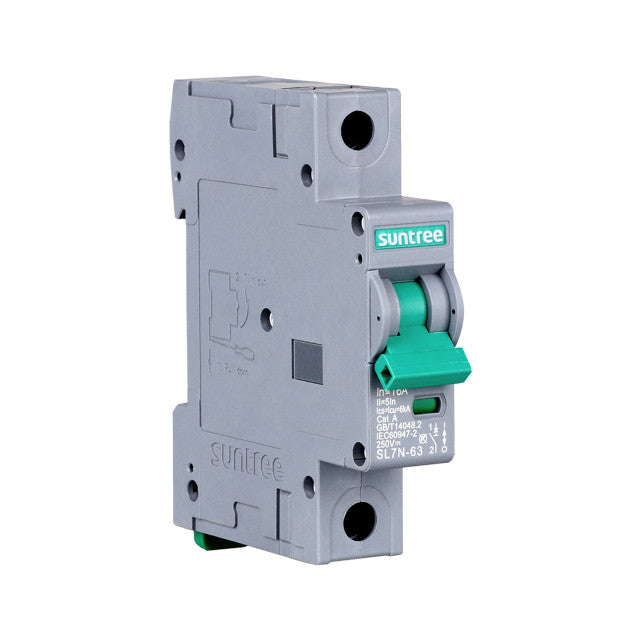

• 4 x 16A 1P DC Miniature Circuit Breaker
• 1 x DC Circuit Breaker Box
• 1 x 50A 1P DC Miniature Circuit Breaker
• 1 x 16ft 10AWG Battery to Charge Controller Tray Cables for 3/8 inch Lugs (Pair)
• 2 x 8ft 8AWG Solar Stranded Copper PV Wire
• 1 x 160A 2P DC Molded Case Circuit Breaker
• 1 x 48V 3500W Solar Inverter Charger
• 8 x 12V 200Ah AGM Battery
• 8 x 12 inch 1AWG Copper Battery Interconnect Cable for 3/8 inch Lugs
• 2 x 8ft 1AWG Copper Battery Inverter Cables for 3/8 inch Lugs (Pair)

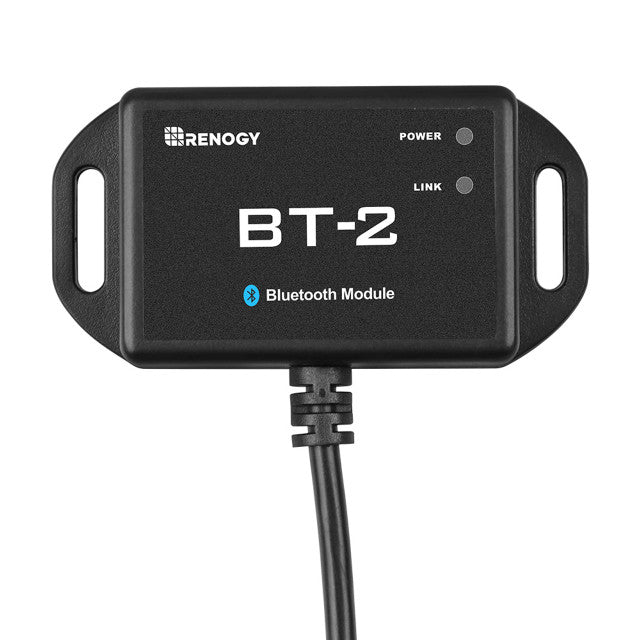

• 1 x BT-2 Bluetooth Module
