Renogy 40A DC-DC Battery Charger with MPPT

Description

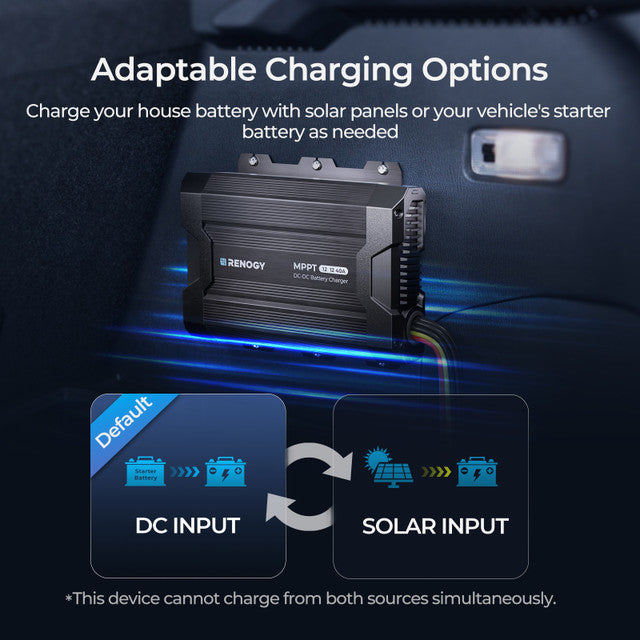

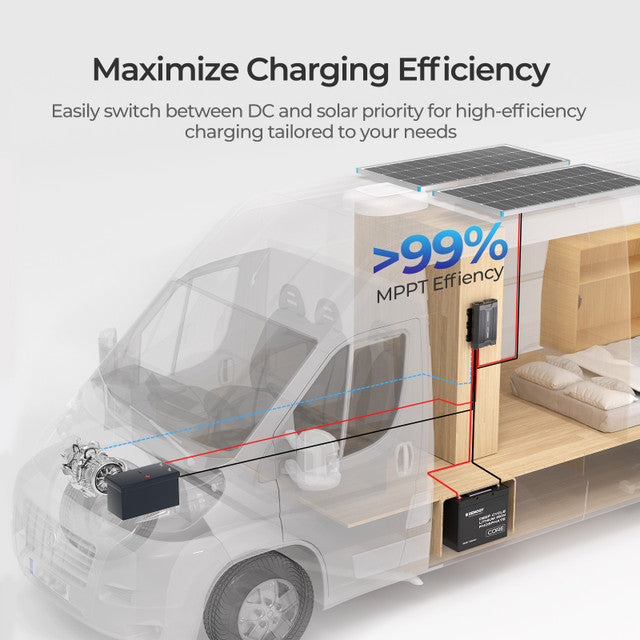

• Two charging options for enhanced efficiency
• Compatible with LiFePO4, Gel, Flooded, and Sealed Lead Acid batteries

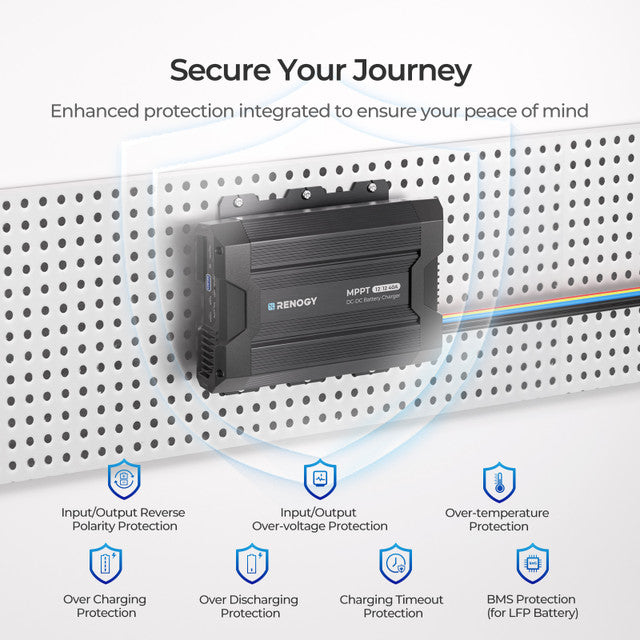

• Comprehensive protections to safeguard the system

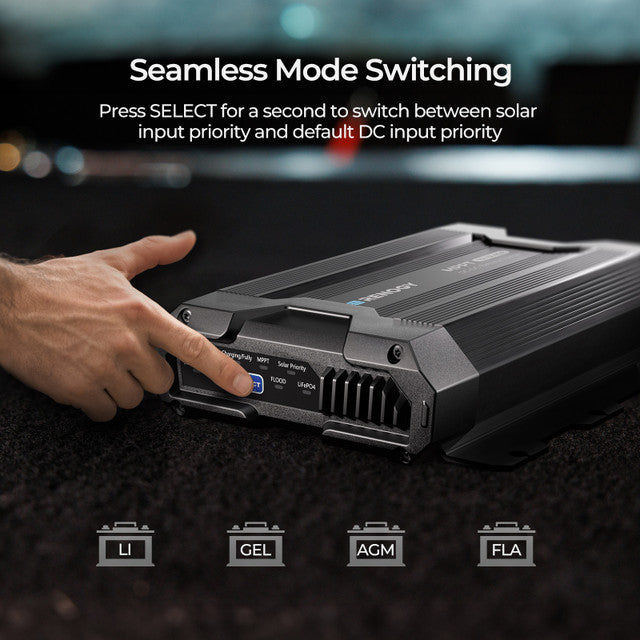

• Equipped with indicator lights and buttons for simple operation and error alerts
• Meets FCC, RoHS, CE, and SAA standards and 2-year warranty

Specifications

• Model: RBC40D1S
• Grounding: Common Negative
• Operating Temperature: -4℉ -113℉ /-20 ℃ - 45℃
• Storage Temperature: -4℉ -140℉ /-20 ℃ - 60℃
• Humidity: 0%~95% RH
• Cooling: Heat Sink
• Enclosure Rating: IP31

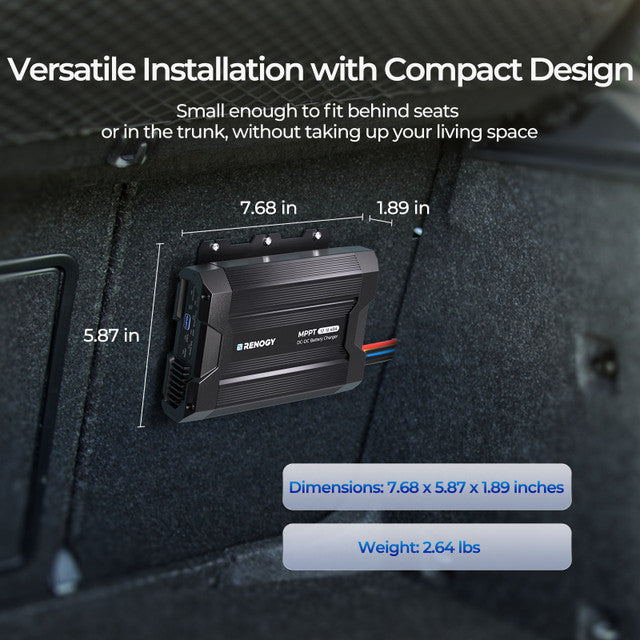

• Dimensions (LxWxH): 195 x 149 x 48 mm / 7.68 x 5.87 x 1.89 inch
• Weight: 1.2 kg /2.65 lb
• Regulatory and Safety Specifications: FCC Path 15, Class B,CE,RoHS，SAA

Charging Data

• System Voltage: 12V-12V
• Maximum Output Current Rating: 40A

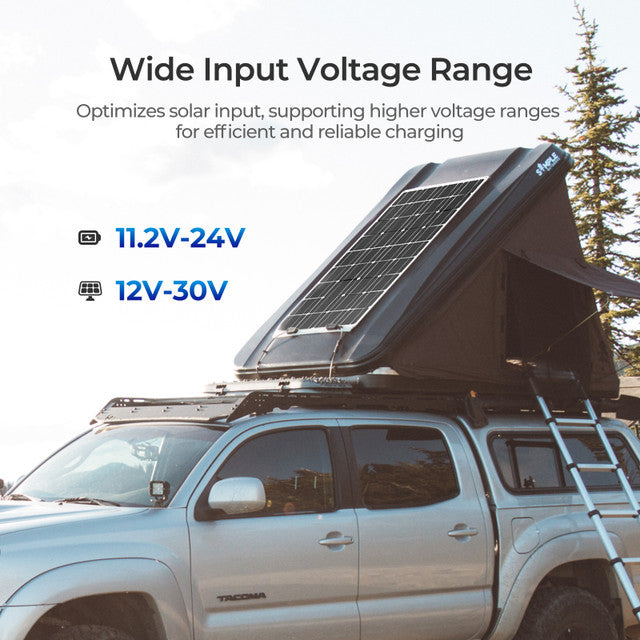

• Solar Input Voltage: 10 -30V DC
• Output Voltage: 10 -16V DC
• Alternator Input: Traditional Alternator: 13.2-16.0VDC; Smart Alternator (Euro 6): 12-16.0VDC
• Output Power: 616W
• Battery Types: AGM, Gel, Flooded, Lithium-iron Phosphate
• Input Fuse Rating: 60A
• Output Fuse Rating: 50A
• Charging Efficiency: ≥93%
• Idle Power Consumption: ＜10 mA

• 2-year material warranty
