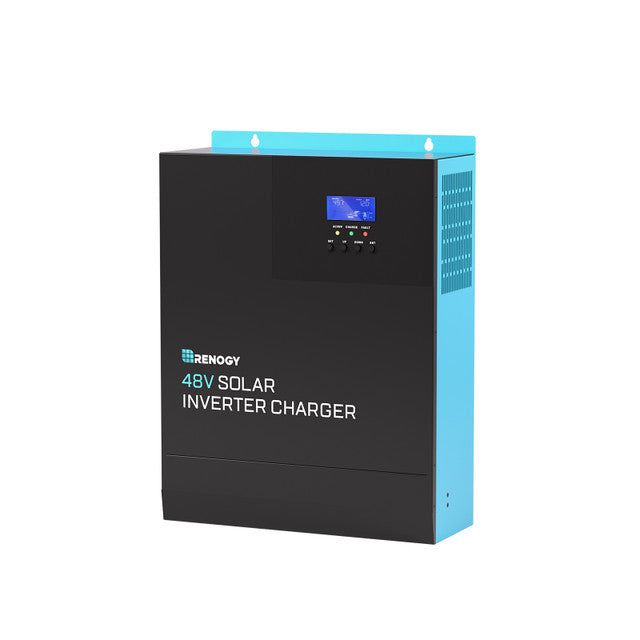

48V 3500W Solar Inverter Charger

Description

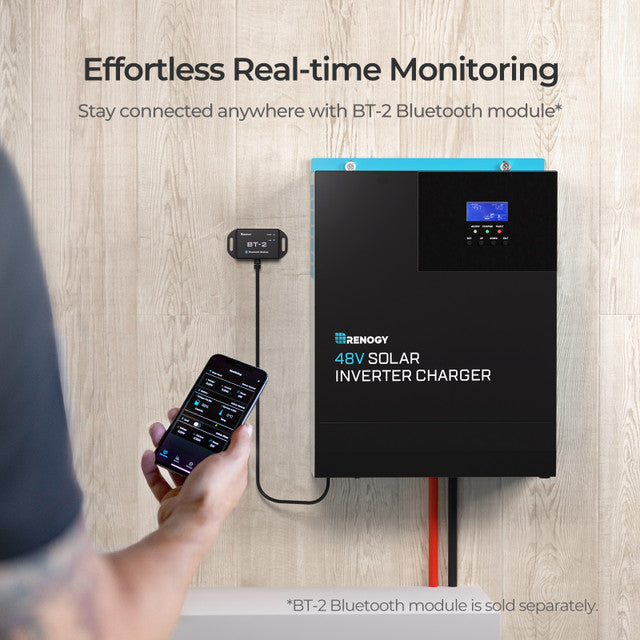

• Compatible with BT-2 for monitoring via App, Renogy ONE M1/Core.
• Output 3500W continuous and 7000W surge power.
• 48W low idle consumption and 25W when the Power Saving Mode.

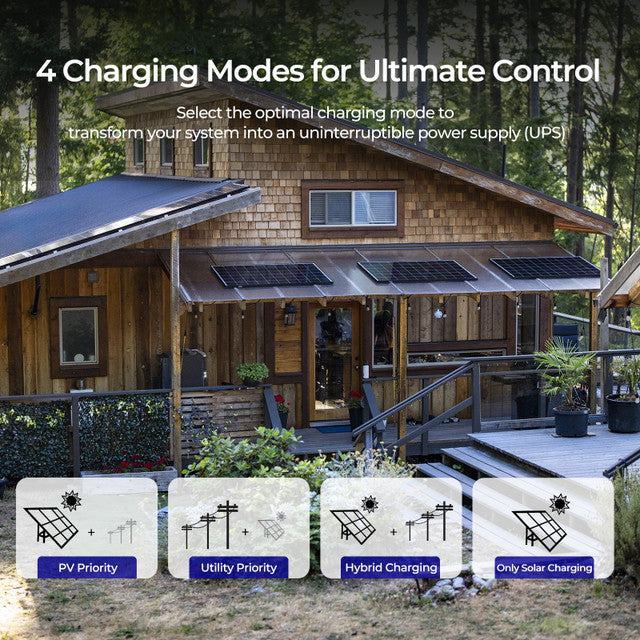

• Uninterruptible power supply if other charging ways failure.

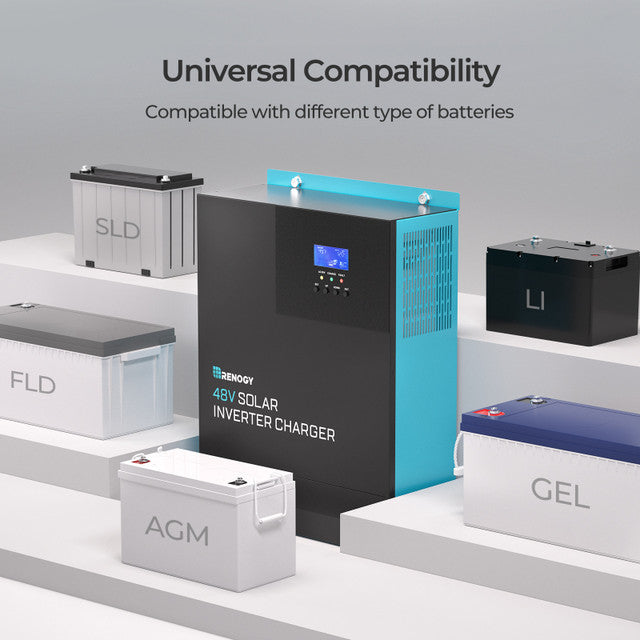

• Suitable for all types of 48V batteries.

Specifications

• Output Waveform: Pure Sine Wave
• Continuous Output Power: 3500W
• Peak Power Rating: 7000W
• Output Voltage: 120VAC±5%
• Output Frequency: 50 Hz ± 0.3% 60 Hz± 0.3%
• Input Voltage / Rated Battery Voltage: 48VDC (minimum start-up voltage 44V)
• Nominal Efficiency: > 90%
• Bypass Breaker Current Load: 40A
• Idle Consumption: 48W
• Power Saver Mode Idle Consumption: ＜25W

• Charge Controller Type: MPPT
• Maximum Input Power: 4400W
• Maximum Input Current: 50A
• PV Charging Current Range: 0-80A
• Recommended Max. PV Open Circuit Voltage: 145VDC
• PV Operating Voltage: 60-145VDC
• MPPT Voltage Range: 60-115VDC
• Short-circuit Protection: Internal Fuse
• Wiring Protection: Reverse Polarity
• Recommended Wiring: 8 AWG

• Rated Input Voltage/Input Voltage Range: 120Vac/90 ~ 140VAC ± 2% Adjustable
• Frenquency: 50 Hz / 60 Hz (auto detect)
• Efficiency: ＞95%
• Conversion Time: 10ms
• Battery Type: Lead Acid and Lithium Battery
• Maximum Charging Current: 40A
• Charging Voltage Range: 40-60VDC
• Short-circuit Protection: Breakers and fuses
• Overcharge Protection: Yes. Automatically alerts and turns off charging after 1 min)
• Reverse Flow Protection: Yes

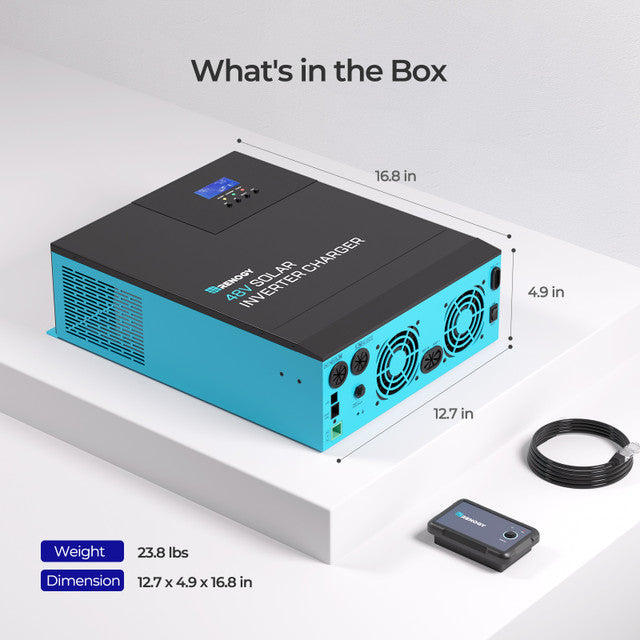

• Dimensions: 16.8*12.7*4.9 in / 426*322*124 mm
• Weight: 23.8 lbs /10.8kg
• Communication Port: RS485/CAN Communication Port (BT-2 Bluetooth Module)
• Cooling Fan: Yes
• Operating Temperature Range: 5°F ~ 131°F/ -15°C ~ 55°C
• Storage Temperature: -13°F ~ 140°F / -25°C ~ 60°C
• Humidity: 5% to 95% (three-layer paint protection)
• Noise: ≤60dB
• IP Grade: IP 20
• Safety Class: I

• CE, FCC: Yes

• 1-year Prorated Warranty: Yes
