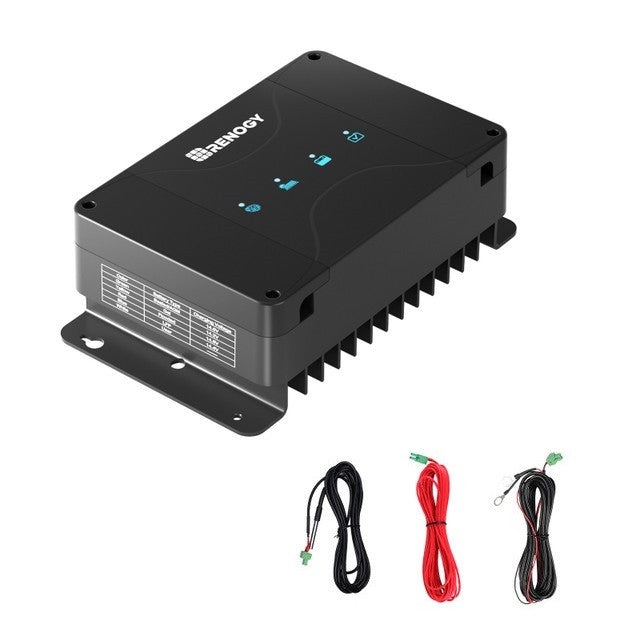

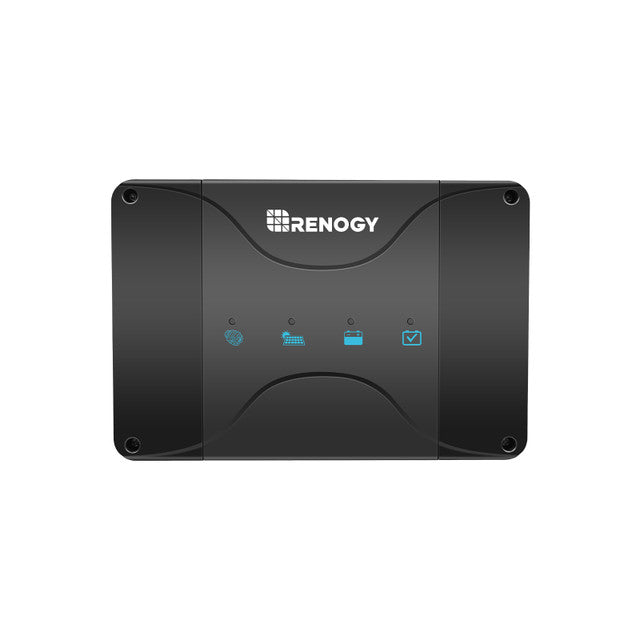

Renogy DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger with MPPT

Description

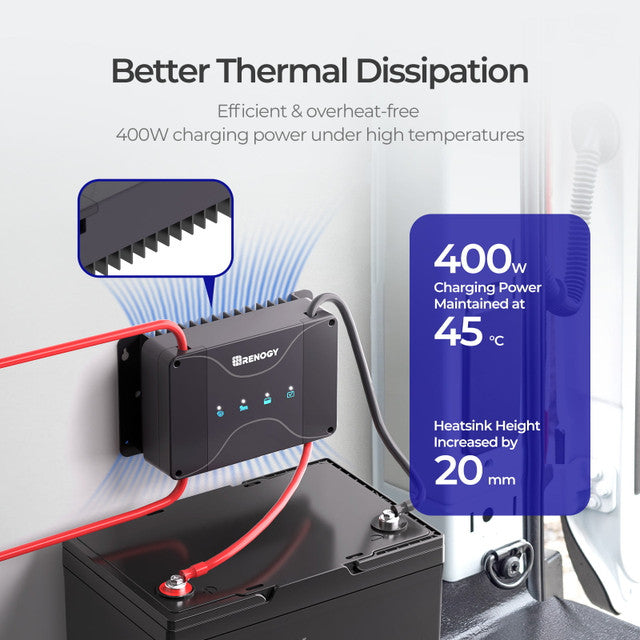

• Enhanced heat dissipation and safety.
• Max solar panel input voltage upgraded to 30V.

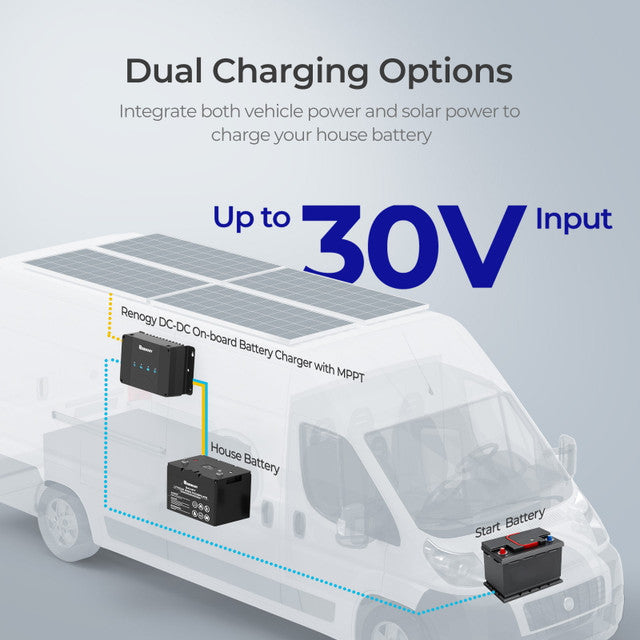

• Versatile connections for DIY solar panel setups.
• Optimized charging logic for efficiency boost.

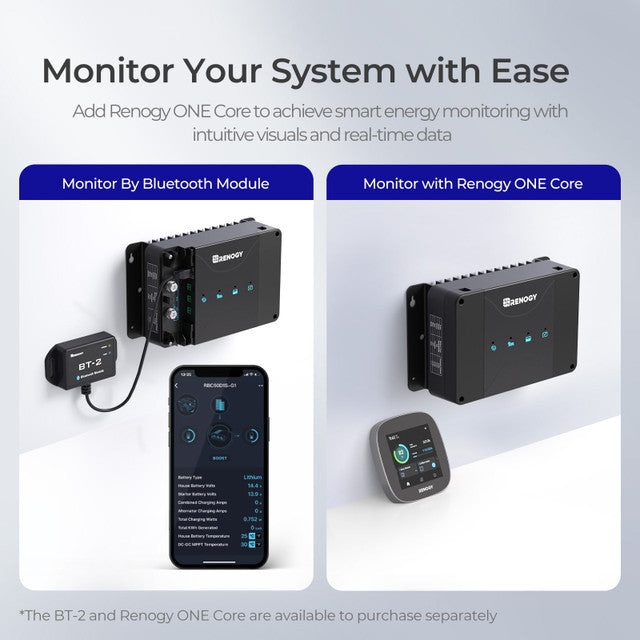

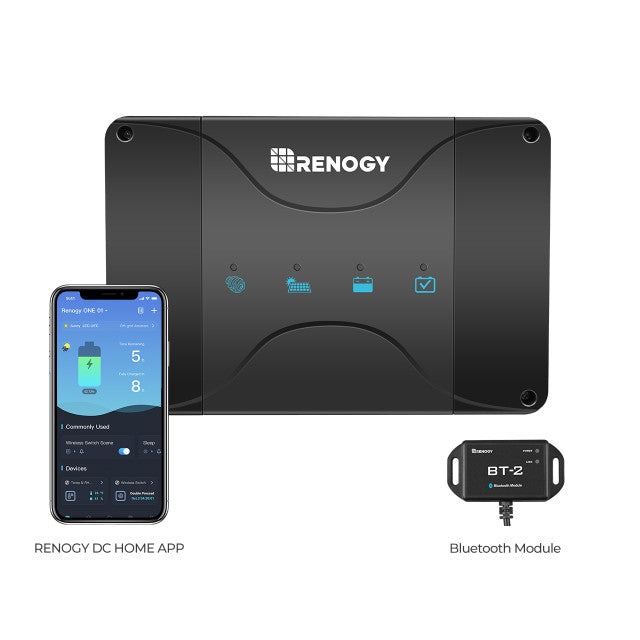

• Smart charging and monitoring with DC Home app.

Specifications

• System Voltage: 12VDC
• Battery Voltage Range: 9-16VDC
• Maximum Charging Current: 30A

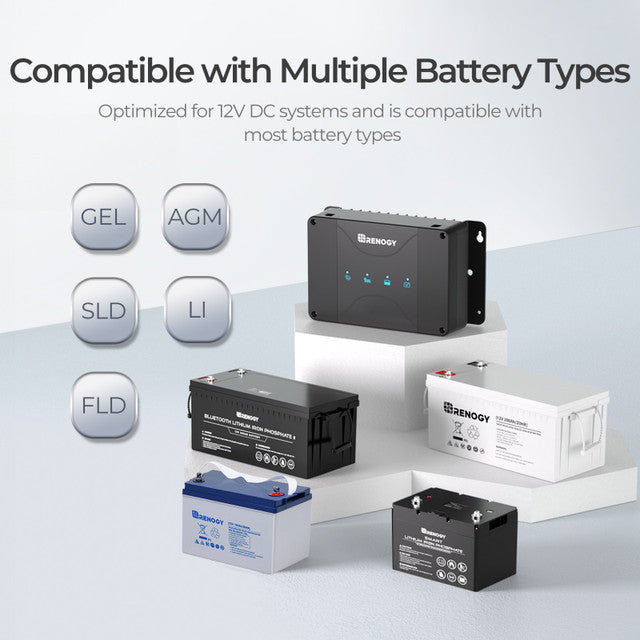

• Battery Types: AGM/SLD , GEL ,FLD ,LI ,USER

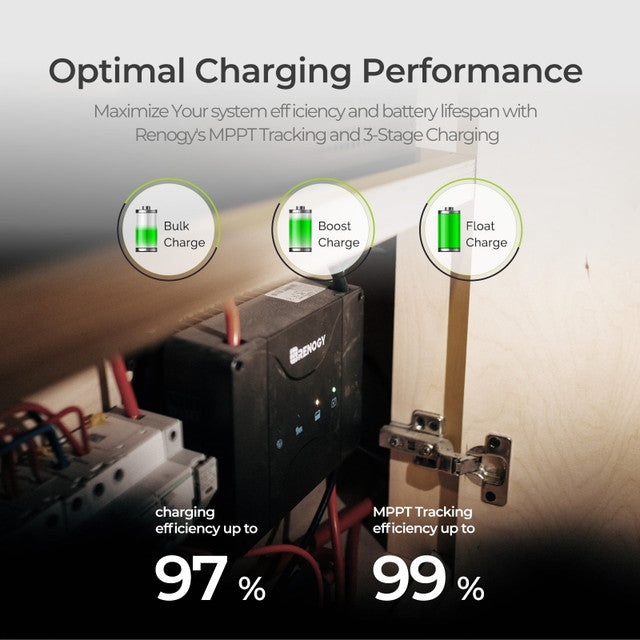

• Service Battery Charging Mode: MPPT
• Charging Efficiency: 94%
• Max. Solar Input Voltage: 30V
• Max. Solar Input Power: 400W
• Alternator Input Voltage: Traditional Alternator: 13.2-16VDC ; Smart Alternator (Euro 6): 12-16VDC
• Max. Alternator Input Power: 400W
• Self-consumption: 60mA
• Temperature Compensation (Non-Lithium): -3mV / ℃ / 2V
• Temperature Compensation (Lithium): 0mV / ℃ / 2V
• Idle Power Consumption: ＜30mA

• Ground Type: Negative
• Terminal Size: M8*1.25 - 10mm
• Terminal Range: 8AWG-4AWG
• Operating Temperature Range: -31℉ to 149℉/-35℃ to 65℃
• Storage Temperature Range: -40℉ to 176℉/-40℃ to 80℃
• Operating / Storage Humidity: 0%-95%, No Condensation
• Dimensions: 9.61 x 5.75 x 3.03 inch/244 x 146 x 77mm
• Weight: 3.11 lb / 1.41 kg
• Communication Protocol: RS485

• Certification: CE;ROHS;FCC Part 15 class B; ETL listed to UL 1741 & CSA C22.2

• Material and workmanship warranty: 2 Year
