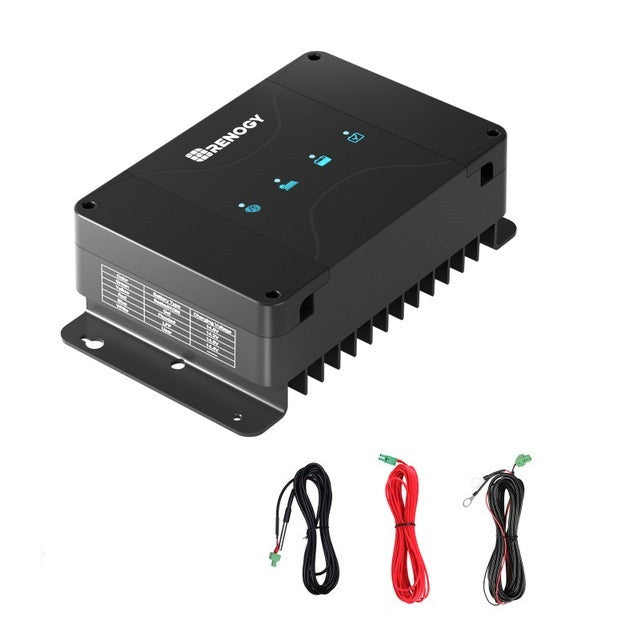

Renogy DCC50S 12V 50A DC-DC On-Board Battery Charger with MPPT

Description

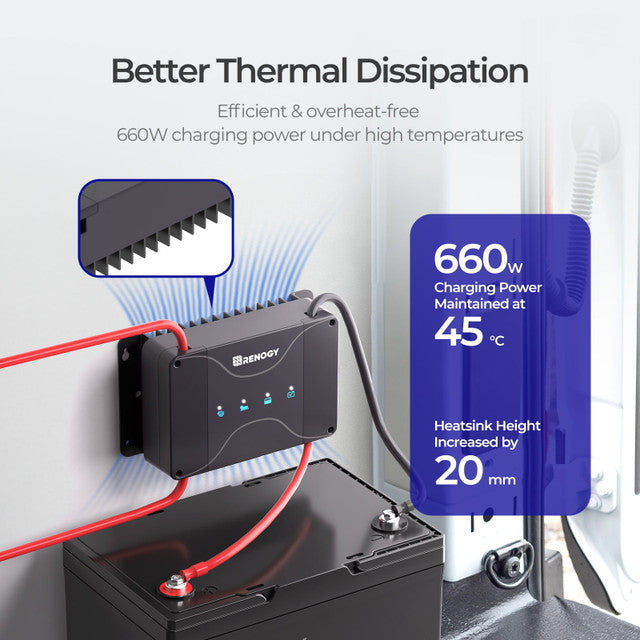

• Enhanced heat dissipation and safety.
• Max solar panel input voltage upgraded to 50V.

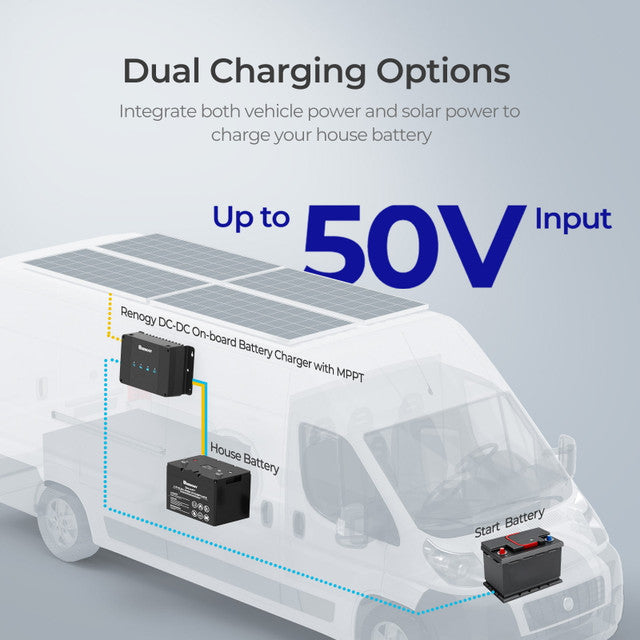

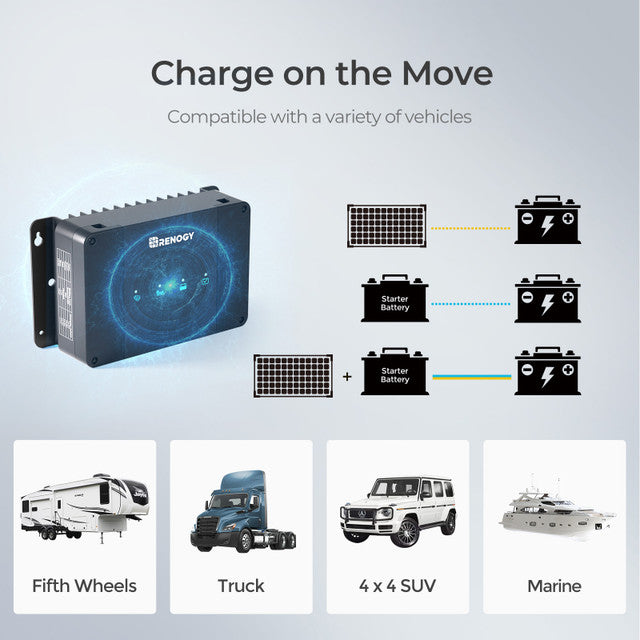

• Versatile connections for DIY solar panel setups.

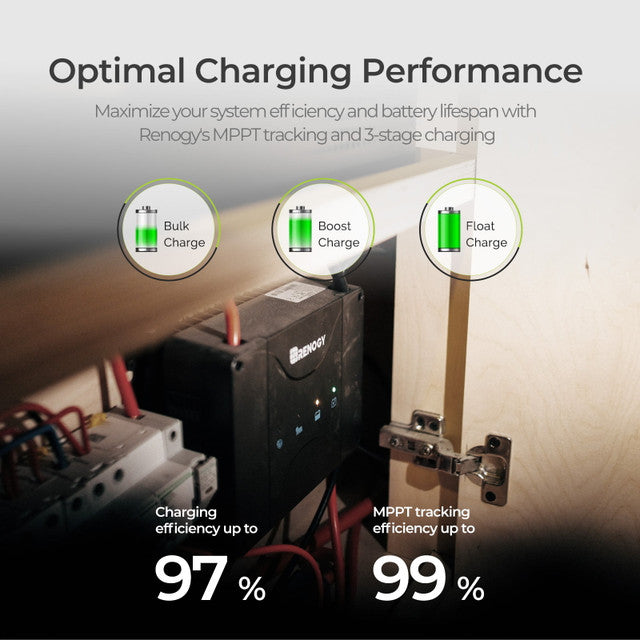

• Optimized charging logic for efficiency boost.

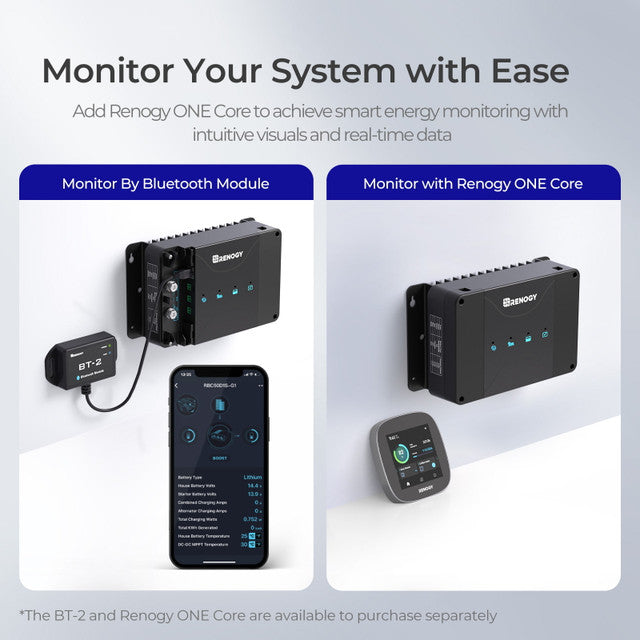

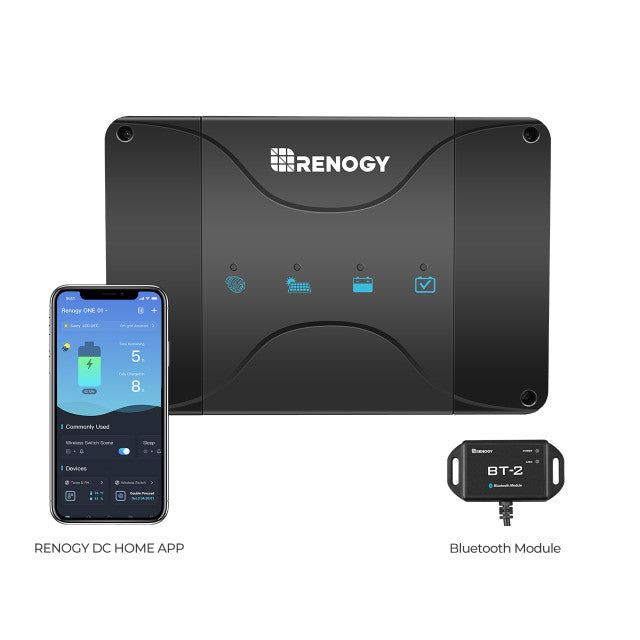

• Smart charging and monitoring with DC Home app.

Specifications

• System Voltage: 12VDC
• Battery voltage Range: 9-16VDC
• Maximum Charging Current: 50A

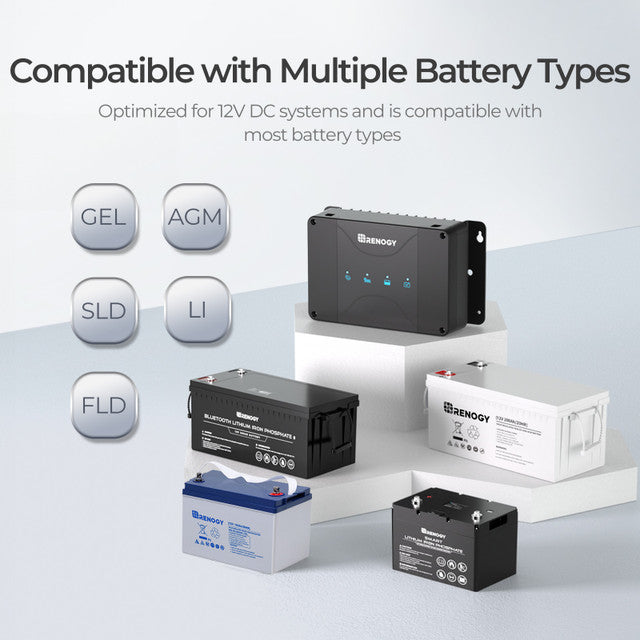

• Battery Types: AGM/SLD , GEL ,FLD ,LI,USER
• Charging Efficiency: 94%
• Max. Solar Input Voltage: 50V
• Max. Solar Input Power: 660W @ 50A
• Alternator Input Voltage: Traditional Alternator: 13.2-16VDC ; Smart Alternator (Euro 6): 12-16VDC
• Max. Alternator Input Power: 660W @ 50A
• Self-consumption: 60mA
• Input Fuse Rating: 75A-100A
• Output Fuse Rating: 75A-100A
• Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium) ; 0mV / ℃ / 2V (Lithium)
• Idle Power Consumption: ＜30mA

• Terminal Size: M8 x 1.25 - 10mm
• Terminal Range: 8AWG-4AWG
• Terminal SizeGround Type: Negative
• Grounding: Common Ground
• Communication Protocol: RS485
• Operating Temperature Range: -31℉ to 149℉/-35℃ to 65℃
• Storage Temperature Range: -40℉ to 176℉/-40℃ to 80℃
• Operating / Storage Humidity: 0%-95%, No Condensation
• Dimensions: 9.61 x 5.75 x 3.78 inch/244 x 146 x 96mm
• Weight: 4.10 lb / 1.86 kg

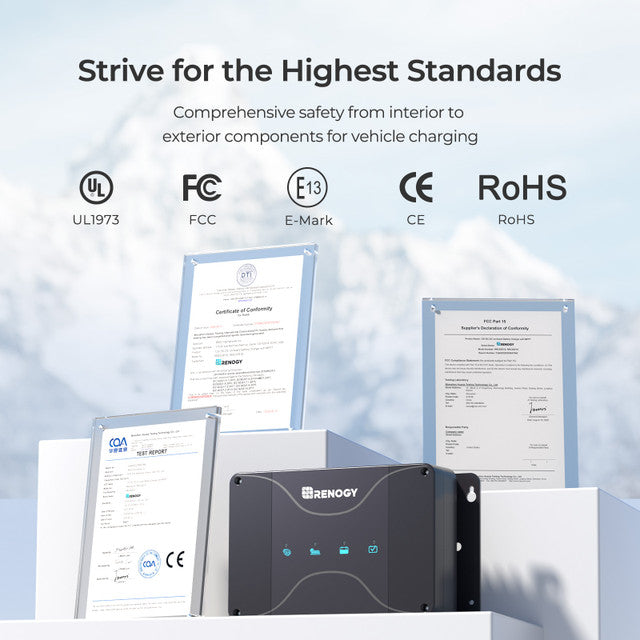

• CE;ROHS
• FCC Part 15 class B
• ETL listed to UL 1741 & CSA C22.2

• Material and workmanship warranty: 2 Year
